Weigh Price Labelling Scale ENQUIRE NOW BUY NOW
TSDPS5000E
- legal for trade use (TS2056)
- direct thermal printing
- large stainless steel weighing platform
- easy label change with front loading label cassette
- built-in operator training modules
- touch screen operator display
- remote diagnostics and support
- helpful on-screen operator prompts
- high resolution printing at 300 dpi
- display panel rotates +/- 30 degrees left/right and 0~90 degrees up/down
- easily switch between receipt printing and label printing
- platform weight approx 6.6 kg
- printer weight approx 10.8 kg
OPTIONS
- wireless communications interface (part code BL9898)
- sturdy stainless steel printer stand (as shown)
Dual range capacity;
0 - 6 kg x 2 g
6 kg - 15 kg x 5 g
| Legal for Trade Use | Yes (TS2056) |
| Scale Type | Bench |
| Operator Panel |
NEC 8.4" TFT SVGA with Touch Screen with CCFL backlight Display panel rotates left-right and up-down |
| Customer Panel | NA |
| Weighing Units | g, kg |
| Price Computing Function | Yes |
| Label/Receipt Printing Function | Yes |
| Label Type | Standard Lined Labels Linerless Labelling available as a factory fitted option |
| Wrapping Function | No |
| Operating Temperature | -10 ºC to +40 ºC |
| Power | Mains Power |
| Environment Suitability | Dry |
| Ingress Protection Rating | No |
| Comms Ports | Ethernet, USB, 2 x RS232 ports (mini DIN), SD Socket |
| Platform Dimensions (mm) | 355 (W) x 290 (D) x 58 (H) |
| Printer Dimensions (mm) | 220 (W) x 422 (D) x 407 (H) |
What's the best way to care for my thermal printhead?
Thermal printheads impact print quality, are very delicate and can be costly to replace. Care is needed when cleaning to ensure operator safety and prevent unnecessary damage to the printhead. Please see the guidelines published in our Info Centre. Click here to view our Thermal Printhead Care instructions.
Weigh Price Labelling Scale ENQUIRE NOW BUY NOW
TSDPS5000E

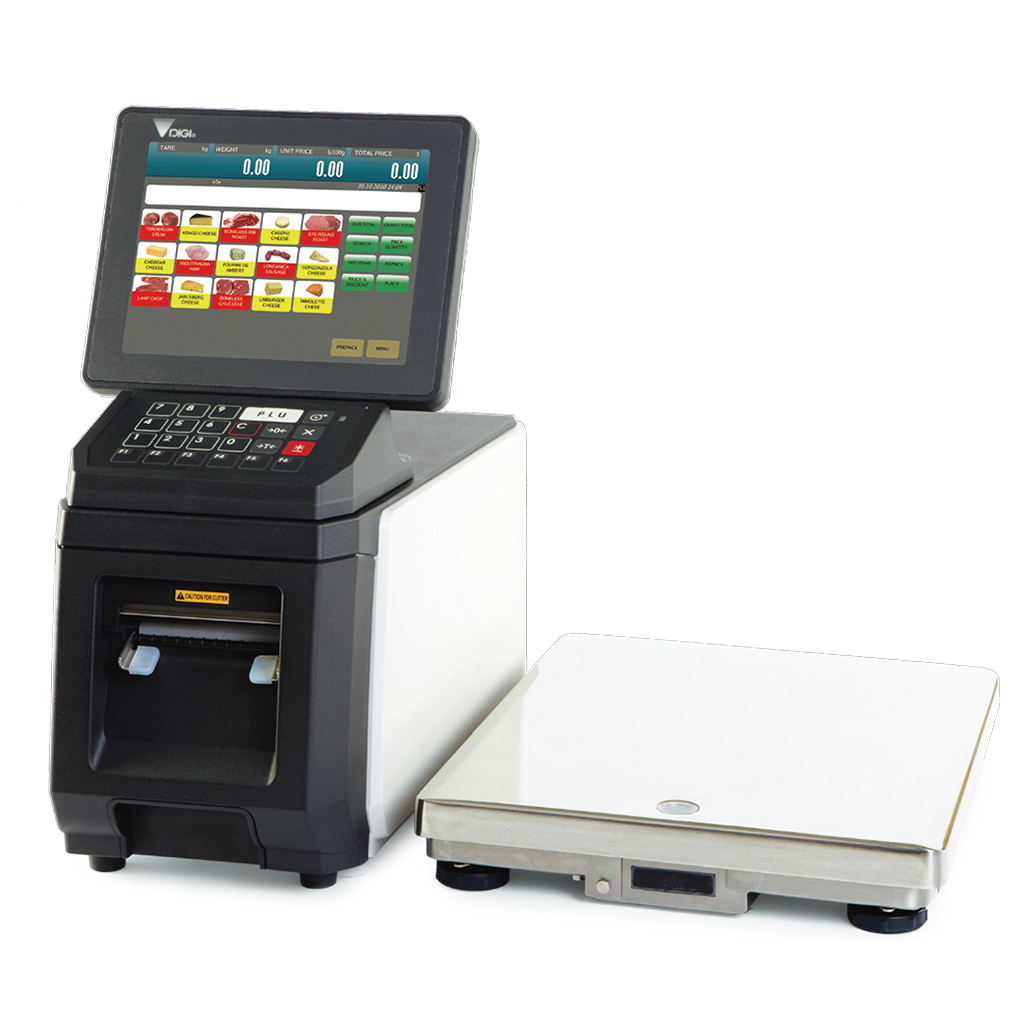

Intelligent stand-alone touch screen Weigh Labeller with separate stainless steel weighing platform and optional stainless steel printer stand. Trade approved in New Zealand.
Linerless Labelling is available as a factory fitted option.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
Weigh Price Labelling Scale
Platform Size (mm): 355 (W) x 290 (D)
Maximum Capacity: 15 kg
Graduation Interval: 2 g / 5 g
POA
