In-Line Checkweigher and Metal Detector System ENQUIRE NOW BUY NOW
TSXCGCOMBI
- quiet and smooth belt operation
- compact footprint - the combined unit design saves space
- touch screen interfaces
- programmable memory stores up to 90 items
- automatic rejection with reject confirmation (optional)
- removable belt assembly allows easy egress for cleaning
- live on-screen statistical data for instant production review
- stainless steel construction
OPTIONS:
- reject confirmation sensor
- metal detection test wands
| Weighing Capacity | 3 kg |
| Weighing Accuracy (at max speed) | 1.5 grams |
| Weighing Increments | 0.5 grams |
| Number of Programs | 90 |
| Interface | touch screens |
| Conveyor Speed (max)* | 40 m per minute |
| Belt Width (mm) | 250 |
| Scale Size (mm) | 400 (L) x 250 (W) |
| Aperture Size (mm) | 350 (W) x 175 (H) |
| Maximum Product Size (mm) | 300 (L) x 250 (W) x 100 (H) |
| Power Supply | Single phase 240 VAC 2.0 kW |
| Construction | Stainless Steel |
| Rejection Mechanisms Available | Dual Flapper |
| Conveyor Height (mm) | 850 ± 50 mm |
| Air Supply | 0.6 mPa |
| Footprint Spacing (mm) | 2100 (L) x 990 (W) x 1600 (H) |
* Actual conveyor speed will be dependent on product size.
In-Line Checkweigher and Metal Detector System ENQUIRE NOW BUY NOW
TSXCGCOMBI

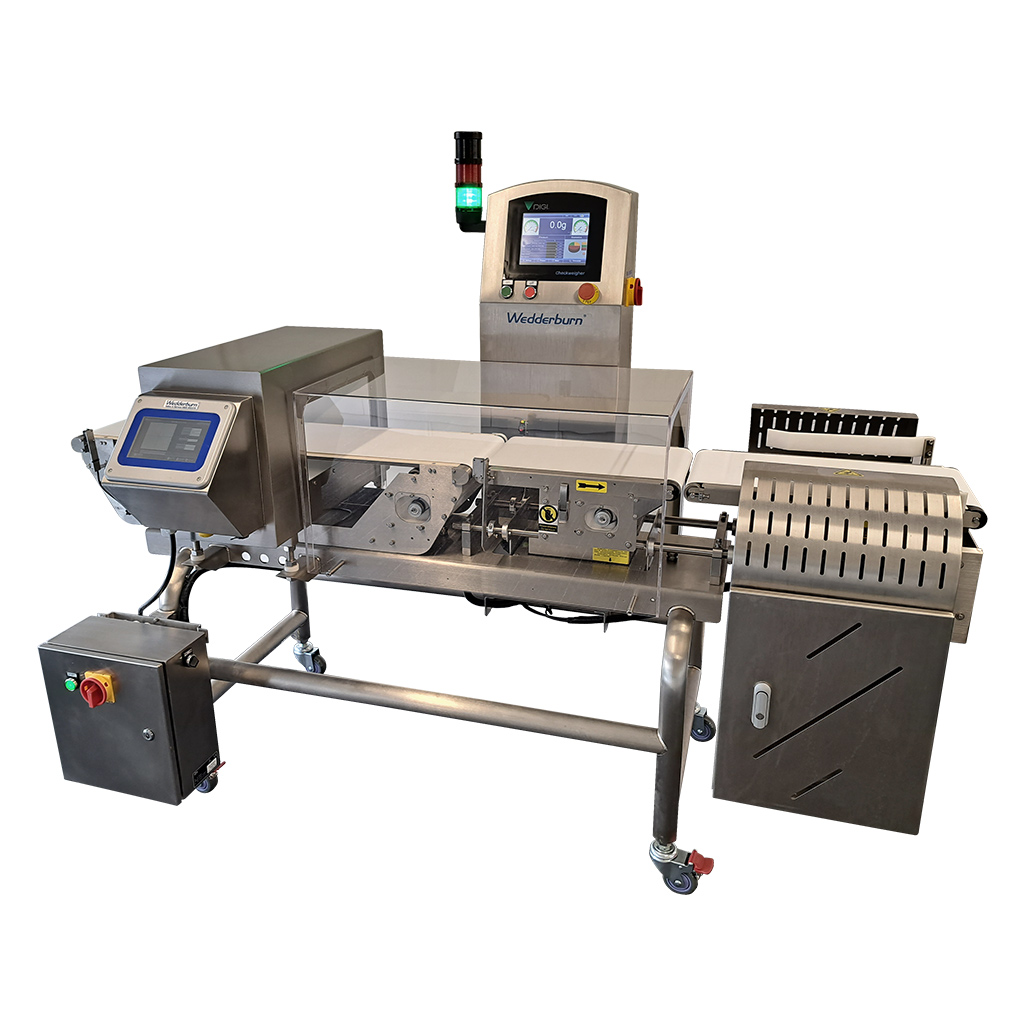

Combining the functions of a checkweigher and metal detector, Wedderburn's DIGI COMBI unit benefits from a simplified and space saving design.
Ideal for industries with small to medium sized packaged products looking for a compact inspection system with easy-to-use touch screen user interfaces. An integrated rejection system enables automated rejection of packets that may contain metal contaminants or fall outside of acceptable weight tolerances.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
In-Line Checkweigher and Metal Detector System
Platform Size (mm): 250 (w) x 400 (l)
Capacity: 3 kg
Belt Width: 250mm
POA
