Stainless Steel Washdown Scale Base ENQUIRE NOW BUY NOW
WS01W1212SF1000
- legal for trade use (TS1505.5)
- trade approval applies when connected to an approved indicator
- maximum approved divisions 3000 d/range
- solid robust 304 stainless steel construction with polished finish
- IP68 protection rating
- heavy duty low profile IP-68 rated weigh platform (120mm overall height)

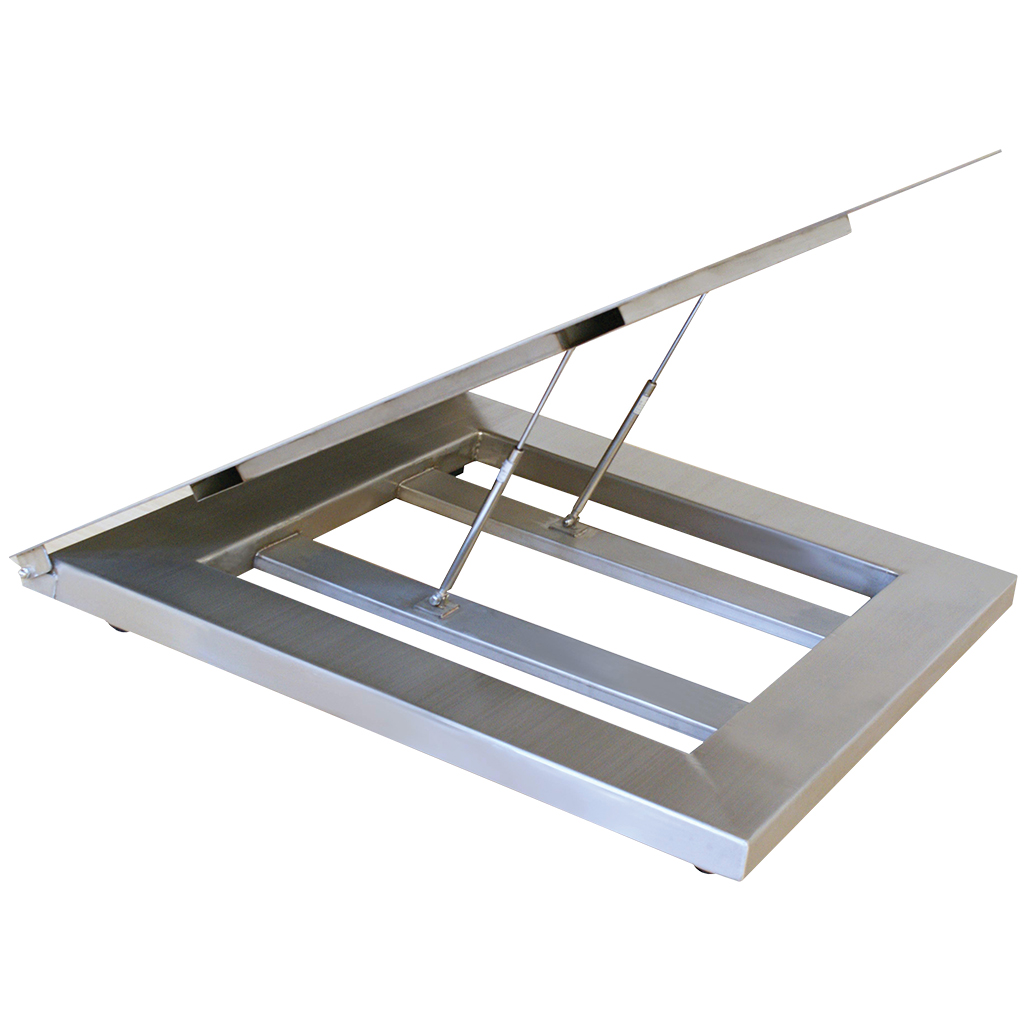

- hydraulic lift weigh platter for ease of cleaning particularly useful in food or chemical environments
- stainless steel ball and cup swivel mount levelling legs
- 4 x 1000kg IP-68 rated, hermetically sealed stainless steel load cells
- ideal for harsh industrial applications and forklift loading
OPTIONS
- on/off loading ramps (order code WS01WLRSC)
| Legal for Trade Use |
Yes when connected to an approved indicator (TS1505.5) |
| Capacity Choices | Please select preferred option from Variations |
| Base Shape | Square |
| Base Material | Stainless steel |
| Base Cover Material | Stainless steel |
| Frame Design | Single frame |
| Platter Lift Mechanism | Yes |
| Loading Ramps | Optional (order code # WS01WLRSC) |
| Environment Suitability | Dry, Wet, Harsh |
| Ingress Protection Rating | IP68 |
| Net Weight of Scale | 115 kg |
Stainless Steel Washdown Scale Base ENQUIRE NOW BUY NOW
WS01W1212SF1000
A heavy duty Scale Base with IP68 rating and hydraulic lift platter that provides easy access for thorough cleaning and washdown. Trade approved when coupled with an approved Scale Indicator, this industrial Platform Scale is ideal for weighing applications in food, chemical or pharmaceutical industries.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
WS01W1212SF10000600
Platform Size (mm): 1200 (W) x 1200 (D) x 120 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg
POA
WS01W1212SF10001500
Platform Size (mm): 1200 (W) x 1200 (D) x 120 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg
POA
WS01W1212SF10003000
Platform Size (mm): 1200 (W) x 1200 (D) x 120 (H)
Maximum Capacity: 3000 kg
Graduation Interval: 1 kg
POA
