Stainless Steel Washdown Scale Base ENQUIRE NOW BUY NOW

WS01TW Series

Features
Specifications
Downloads
  • legal for trade use (TS1505.5)
  • trade approval applies when connected to an approved indicator
  • maximum approved divisions 3000 d/range
  • heavy duty, stainless steel construction
  • IP68 protection rating
  • hydraulic liftable top plate allows easy access to clean under platform\
  • stainless steel IP68 load cells
  • low profile weighing platform (65mm high platform)



OPTIONS

  • on/off loading ramps, see Specification tab for various sizes and order codes
Legal for Trade Use

Yes when connected to an approved indicator

(TS1505.5)

Capacity Choices Please select preferred option from Variations
Base Shape Square
Base Material Stainless steel
Base Cover Material Stainless steel
Frame Design Single frame
Platter Lift Mechanism Not available
Loading Ramps

Optional.
Select size relative to scale base size.

Order Code WS01TWLR08
800 mm (W) x 610 mm (D)

Order Code WS01TWLT10
1000 mm (W) x 610 mm (D)

Order Code WS01TWLR12
1200 mm (W) x 610 mm (D)

Environment Suitability Dry, Wet, Harsh
Ingress Protection Rating IP68

Stainless Steel Washdown Scale Base ENQUIRE NOW BUY NOW

WS01TW Series

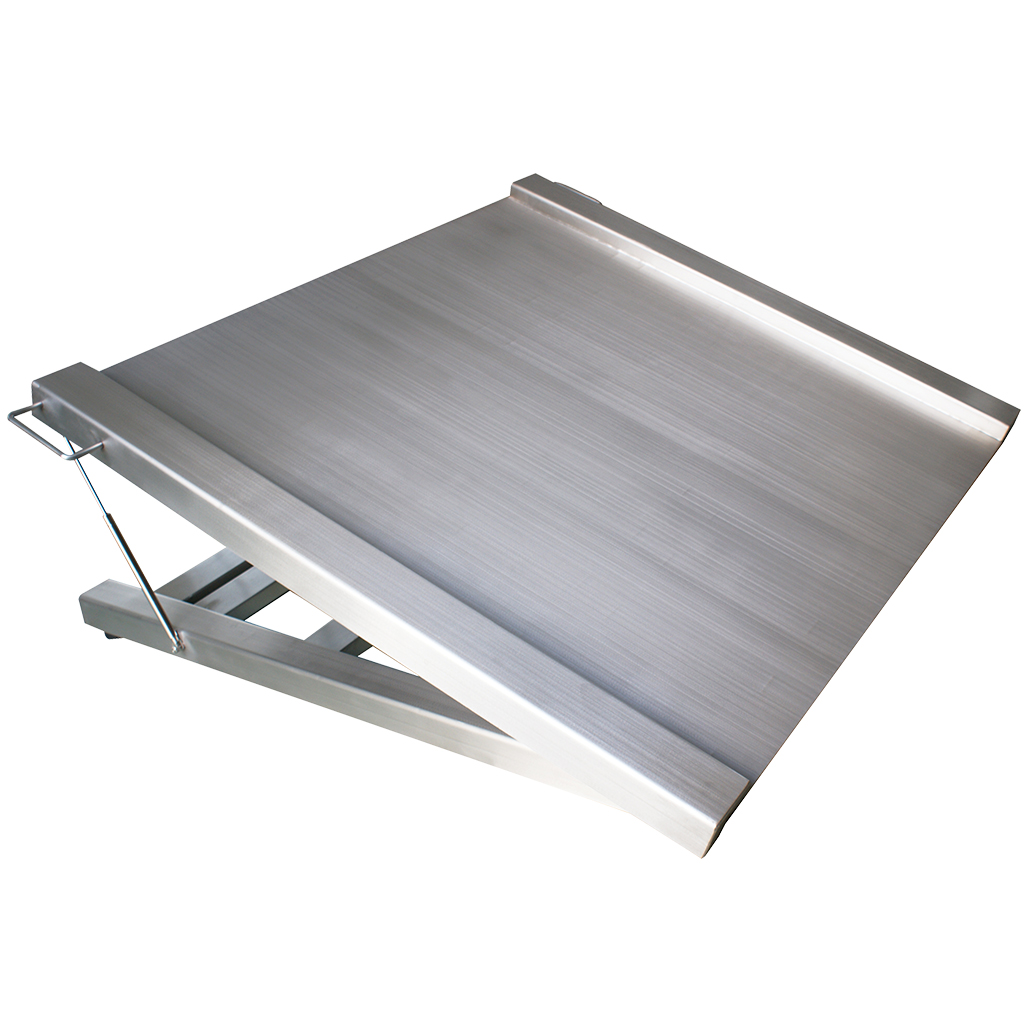

Trade approved and robust, these industrial grade stainless steel Scale Platforms feature a low profile, IP68 rated stainless steel load cells and a hydraulic lifting mechanism that enables easy access underneath the platform for thorough cleaning. Our WS01TW Series Scale Bases also have the option of adding stainless steel loading ramps to provide safe access for warehouse trolleys.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

WS01TW0808SF05000300

Platform Size (mm): 800 (W) x 800 (D) x 65 (H)
Maximum Capacity: 300 kg
Graduation Interval: 0.1 kg

POA

WS01TW0808SF05000600

Platform Size (mm): 800 (W) x 800 (D) x 65 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg

POA

WS01TW0808SF05001500

Platform Size (mm): 800 (W) x 800 (D) x 65 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg

POA

WS01TW1010SF10000600

Platform Size (mm): 1000 (W) x 1000 (D) x 65 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg

POA

WS01TW1010SF10001500

Platform Size (mm): 1000 (W) x 1000 (D) x 65 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg

POA

WS01TW1212SF10000600

Platform Size (mm): 1200 (W) x 1200 (D) x 65 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg

POA

WS01TW1212SF10001500

Platform Size (mm): 1200 (W) x 1200 (D) x 65 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg

POA

Spare Parts / Options

On Off Loading Ramp WS01TW0808SF

WS01TWLR08

POA

On Off Loading Ramp WS01TW1010SF

WS01TWLR10

POA

On Off Loading Ramp WS01TW1212SF

WS01TWLR12

POA
