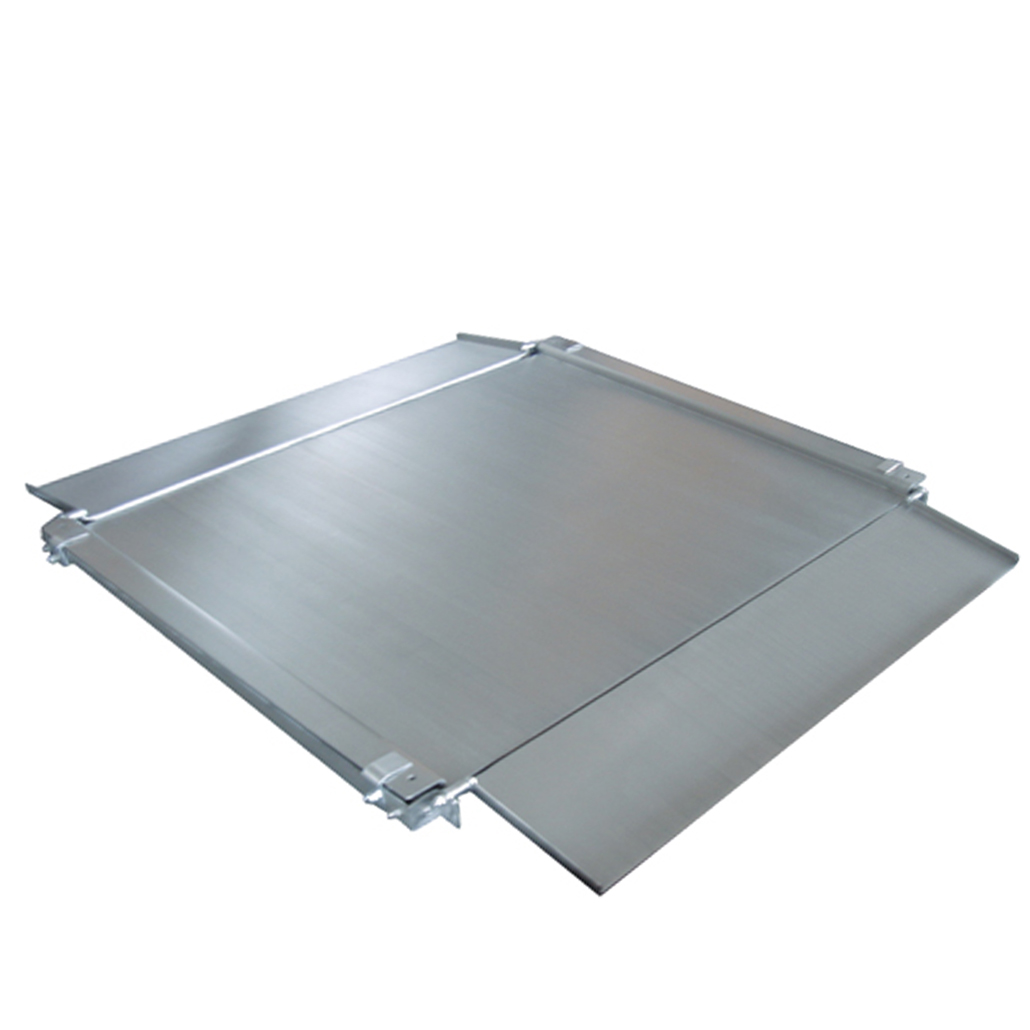

Stainless Steel Trolley Scale Base ENQUIRE NOW BUY NOW

WS01T1010SF0500

Features
Specifications
Downloads
  • legal for trade use (TS1505.5)
  • trade approval applies when connected to an approved indicator
  • maximum approved divisions 3000 d/range
  • solid robust 304 stainless steel construction with polished finish
  • IP68 protection rating
  • heavy duty frame is designed to be bolted in one fixed location and provides additional robustness often required in industrial weighing applications
  • low profile weighing platform (50 mm high)
  • two foldable 500 mm long, on / off loading ramps
  • 4 x 500 kg IP68 rated, hermetically sealed stainless steel steel load cells
  • ideal for industrial applications requiring wheel on and off loading
Legal for Trade Use

Yes when connected to an approved indicator

(TS1505.5)

Capacity Choices Please select preferred option from Variations
Base Shape Square
Base Material Stainless steel
Base Cover Material Stainless steel
Frame Design Single frame
Platter Lift Mechanism Not available
Loading Ramps Foldable loading ramps included
Environment Suitability Dry, Wet
Ingress Protection Rating IP68
Net Weight of Scale 127 kg
Overall Dimensions (mm) 1,090 (W) x 1,040 (D) x 50 (H) including ramps

Stainless Steel Trolley Scale Base ENQUIRE NOW BUY NOW

WS01T1010SF0500

Robust industrial platform scale bases constructed from stainless steel and feature loading ramps that can be folded back when not in use. The heavy duty frame is designed to be bolted in one fixed location and provides additional robustness often required in industrial weighing applications. They include IP68 rated stainless steel load cells and are trade approved.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

WS01T1010SF05000300

Platform Size (mm): 1000 (W) x 1000 (D) x 50 (H)
Maximum Capacity: 300 kg
Graduation Interval: 0.1 kg

POA

WS01T1010SF05000600

Platform Size (mm): 1000 (W) x 1000 (D) x 50 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg

POA
