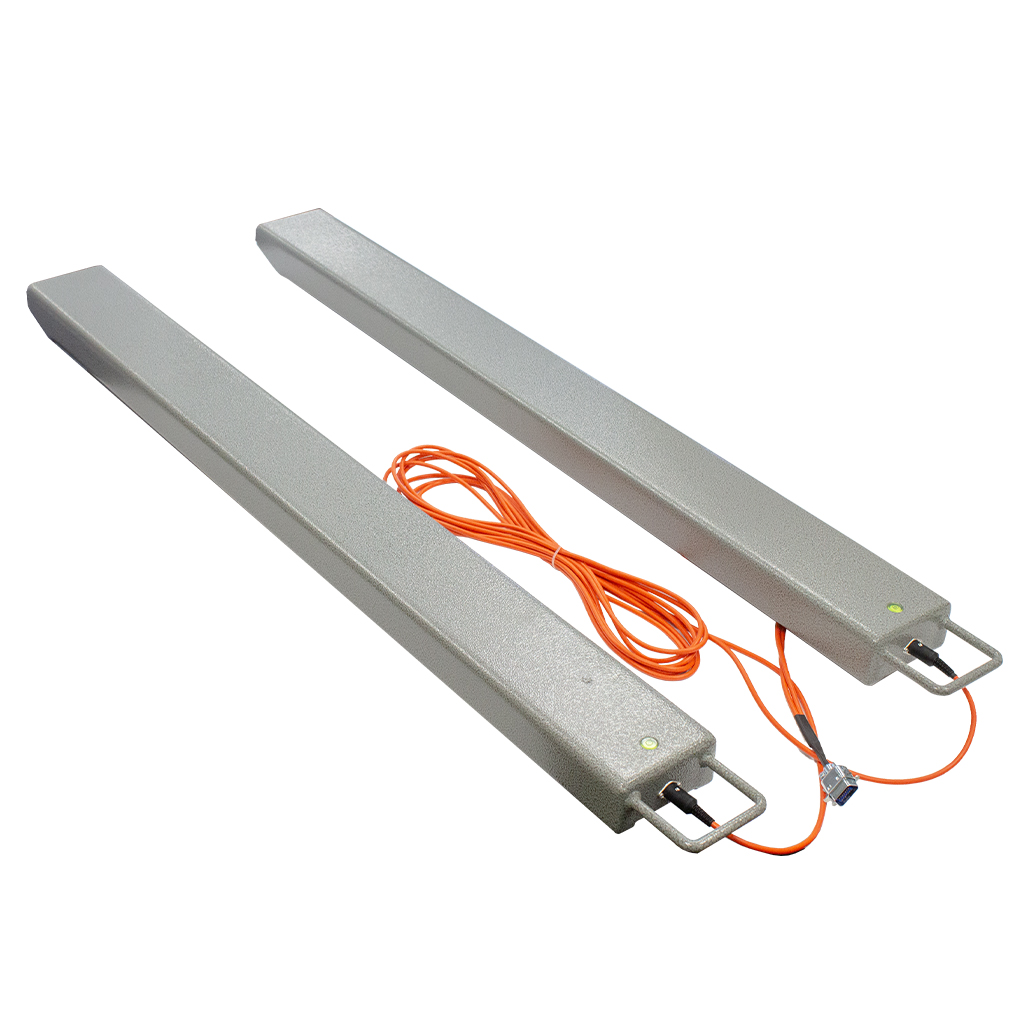

Mild Steel Weigh Bar System ENQUIRE NOW BUY NOW
WS01B Series
- heavy duty, low profile weigh bars
- solid robust mild steel construction with powder coated finish
- 4 x IP-67 rated alloy tool steel load cells
- 600 mm long weigh bars use 1,000 kg load cells
- 1,200 mm long weigh bars use 2,000 kg load cells
- convenient handle at one end and wheel at the other make these weigh bars easy to re-position or move
- ideal for mobile applications, pallet jack and forklift loading
- low profile, 110 mm overall height
- 5 meter high-viz cable (length from weigh bars to indicator)
| Legal for Trade Use | No |
| Capacity Choices | Please select preferred option from Variations |
| Base Shape | Weigh bars x 2 |
| Base Material | Mild steel |
| Base Cover Material | Mild steel |
| Frame Design | Single frame |
| Platter Lift Mechanism | Not available |
| Loading Ramps | Not available |
| Environment Suitability | Dry |
| Ingress Protection Rating | IP67 |
| Net Weight of Bars |
600 mm version = 23 kg 1200 mm version = 42 kg |
Mild Steel Weigh Bar System ENQUIRE NOW BUY NOW
WS01B Series
Heavy duty weigh bars make an ideal alternative to platform scales when weighing oversized or non-standard shaped items. These weigh bars have a low profile, are constructed in mild steel and incorporate IP67 rated load cells. They feature a handle at one end and wheel at the other which makes repositioning them very easy.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
WS01B0606MF1000
Platform Size (mm): 120 (W) x 600 (L) x 110 (H) x 2
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg
POA
WS01B1212MF2000
Platform Size (mm): 120 (W) x 1200 (L) x 110 (H) x 2
Maximum Capacity: 2000 kg
Graduation Interval: 1 kg
POA
