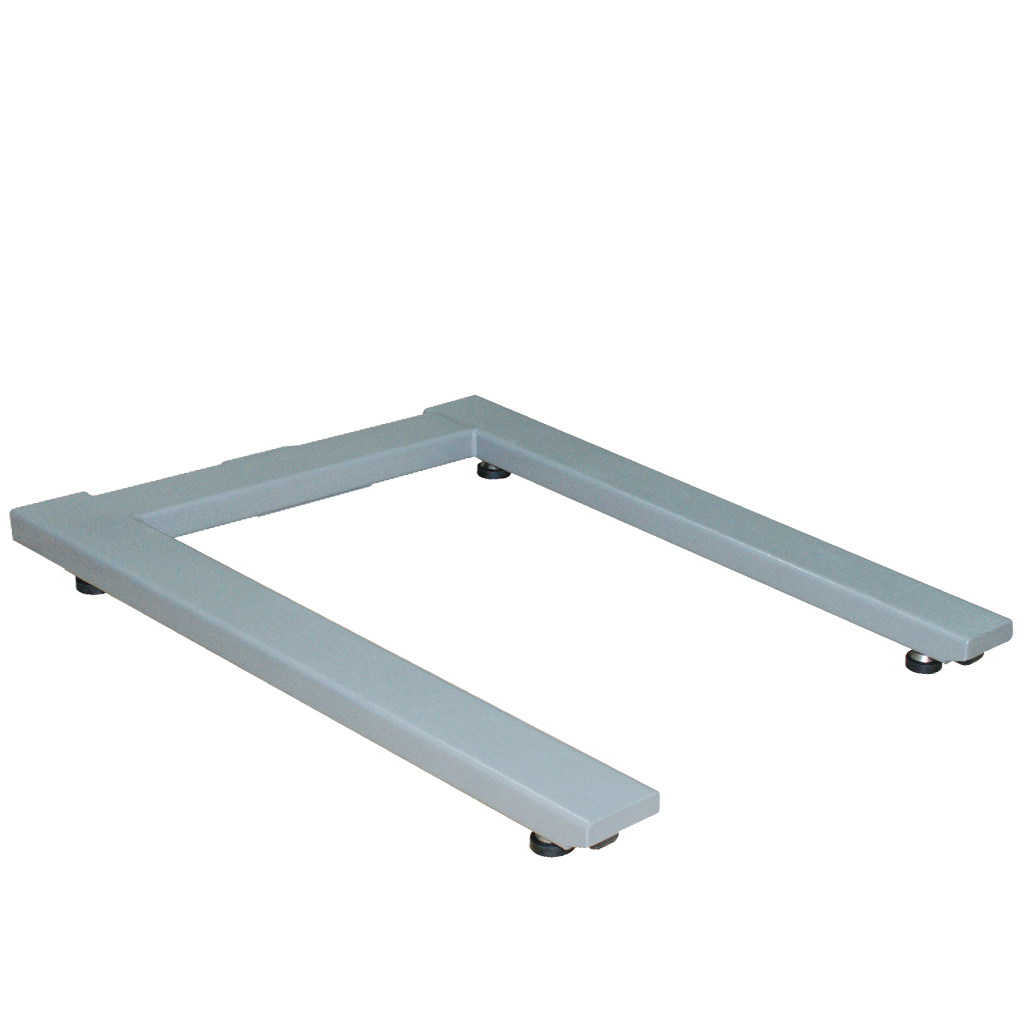

Mild Steel U Shaped Scale Base ENQUIRE NOW BUY NOW
WS01U1012MF1000
- legal for trade use (TS1505.5)
- trade approval applies when connected to an approved indicator
- maximum approved divisions 3000 d/range
- solid robust mild steel construction with powder coated finish
- IP67 protection rating
- heavy duty, portable low profile U shaped weigh platform (120mm overall height)
- ball and cup swivel mount levelling legs
- 4 x 1000kg IP-67 rated alloy tool steel load cells
- ideal for industrial applications with pallet jack and forklift loading
- easy lift handle and two fixed wheels for ease of portability and storage
Dimensions:
| External Size (mm) | 990 (W) x 1250 (D) x 120 (H) |
| Internal Size (mm) | 750 (W) x 1110 (D) |
Specifications:
| Legal for Trade Use |
Yes when connected to an approved indicator (TS1505.5) |
| Capacity Choices | Please select preferred option from Variations |
| Base Shape | U-Shaped |
| Base Material | Mild steel |
| Base Cover Material | Mild steel |
| Frame Design | Single frame |
| Platter Lift Mechanism | Not available |
| Loading Ramps | Not available |
| Environment Suitability | Dry |
| Ingress Protection Rating | IP67 |
| Net Weight of Scale | 70 kg |
Mild Steel U Shaped Scale Base ENQUIRE NOW BUY NOW
WS01U1012MF1000
Robust u-shaped Scale Bases with low profile design that are ideal for industrial weighing applications with pallet jack and forklift loading. These heavy duty scale platforms are constructed from mild steel and feature IP67 rated load cells. The are trade approved in New Zealand.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
WS01U1012MF10000600
Platform Size (mm): 990 (W) x 1250 (D) x 120 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg
POA
WS01U1012MF10001500
Platform Size (mm): 990 (W) x 1250 (D) x 120 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg
POA
WS01U1012MF10003000
Platform Size (mm): 990 (W) x 1250 (D) x 120 (H)
Maximum Capacity: 3000 kg
Graduation Interval: 1 kg
POA
