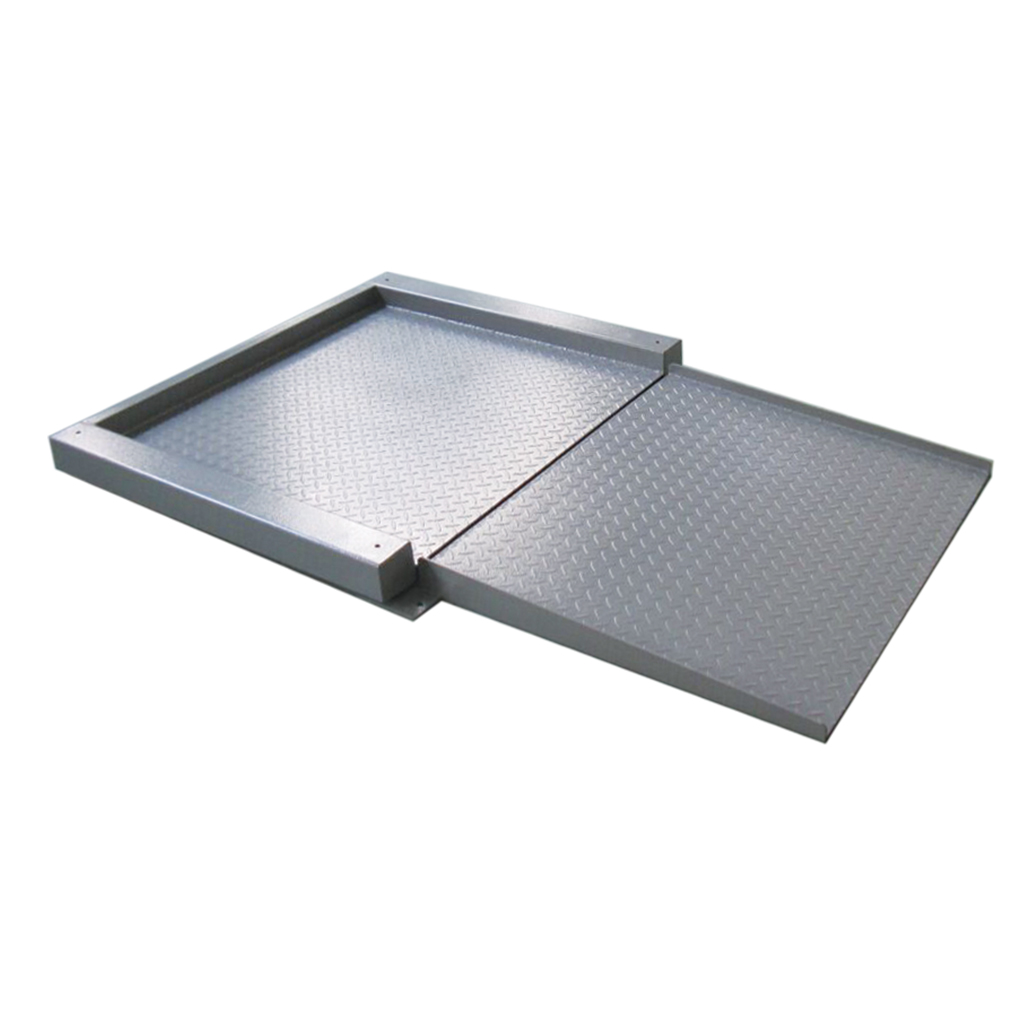

Mild Steel Trolley Scale Base ENQUIRE NOW BUY NOW

WS01TS

Features
Specifications
Downloads
  • legal for trade use (TS1505.5)
  • trade approval applies when connected to an approved indicator
  • maximum approved divisions 3,000 d/range
  • heavy duty, mild steel construction with powder coated finish
  • single on / off loading ramp
  • 4 x IP-67 rated alloy tool steel load cells
  • low profile weighing platform (45 mm high)
  • ideal for industrial applications requiring wheel on and off loading
  • stainless steel options available
Legal for Trade Use

Yes when connected to an approved indicator

(TS1505.5)

Capacity Choices Please select preferred option from Variations
Base Shape Square
Base Material Mild steel
Base Cover Material Mild steel
Frame Design Single frame
Platter Lift Mechanism Not available
Loading Ramps Single loading ramp included
Environment Suitability Dry, Wet, Harsh
Ingress Protection Rating IP67
Overall Dimensions (mm) Varies with capacity. Please refer to the product brochure for full details.

Mild Steel Trolley Scale Base ENQUIRE NOW BUY NOW

WS01TS

Industrial trolley weighing platform scales with single loading ramp for easy and safe roll on/off weighing. These heavy duty scales are constructed from mild steel, feature IP67 rated load cells, have a low profile for ease of loading. Legal for trade use in New Zealand.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

WS01TS0808MC05000300

Platform Size (mm): 800 (W) x 730 (D) x 45 (H)
Maximum Capacity: 300 kg
Graduation Interval: 0.1 kg

POA

WS01TS0808MC05000600

Platform Size (mm): 800 (W) x 730 (D) x 45 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg

POA

WS01TS1010MC05000300

Platform Size (mm): 1000 (W) x 930 (D) x 45 (H)
Maximum Capacity: 300 kg
Graduation Interval: 0.1 kg

POA

WS01TS1010MC05000600

Platform Size (mm): 1000 (W) x 930 (D) x 45 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg

POA

WS01TS1212MC10000600

Platform Size (mm): 1200 (W) x 1130 (D) x 45 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg

POA

WS01TS1212MC10001500

Platform Size (mm): 1200 (W) x 1130 (D) x 45 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg

POA

WS01TS1515MC20001500

Platform Size (mm): 1500 (W) x 1430 (D) x 45 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg

POA
