Mild Steel Trolley Scale Base ENQUIRE NOW BUY NOW

WS01T1212MC0500

Features
Specifications
Downloads
  • legal for trade use (TS1505.5)
  • trade approval applies when connected to an approved indicator
  • maximum approved divisions 3000 d/range
  • solid robust mild steel construction with powder coated finish
  • IP67 protection rating
  • heavy duty frame designed to be bolted in one fixed location and provides additional robustness often required in industrial weighing applications
  • low profile weighing platform (50 mm high)
  • two foldable 500mm long, on / off loading ramps
  • 4 x 500kg IP-67 rated tool steel load cells
  • ideal for industrial applications requiring wheel on and off loading
Legal for Trade Use

Yes when connected to an approved indicator

(TS1505.5)

Capacity Choices Please select preferred option from Variations
Base Shape Square
Base Material Mild steel
Base Cover Material Mild steel
Frame Design Single frame
Platter Lift Mechanism Not available
Loading Ramps Standard. Can be folded away when not in use.
Environment Suitability Dry
Ingress Protection Rating IP67
Net Weight of Scale 160 kg
Overall Dimensions (mm) 1,360 (W) x 2,206 (D) x 50 (H) including ramps

Mild Steel Trolley Scale Base ENQUIRE NOW BUY NOW

WS01T1212MC0500

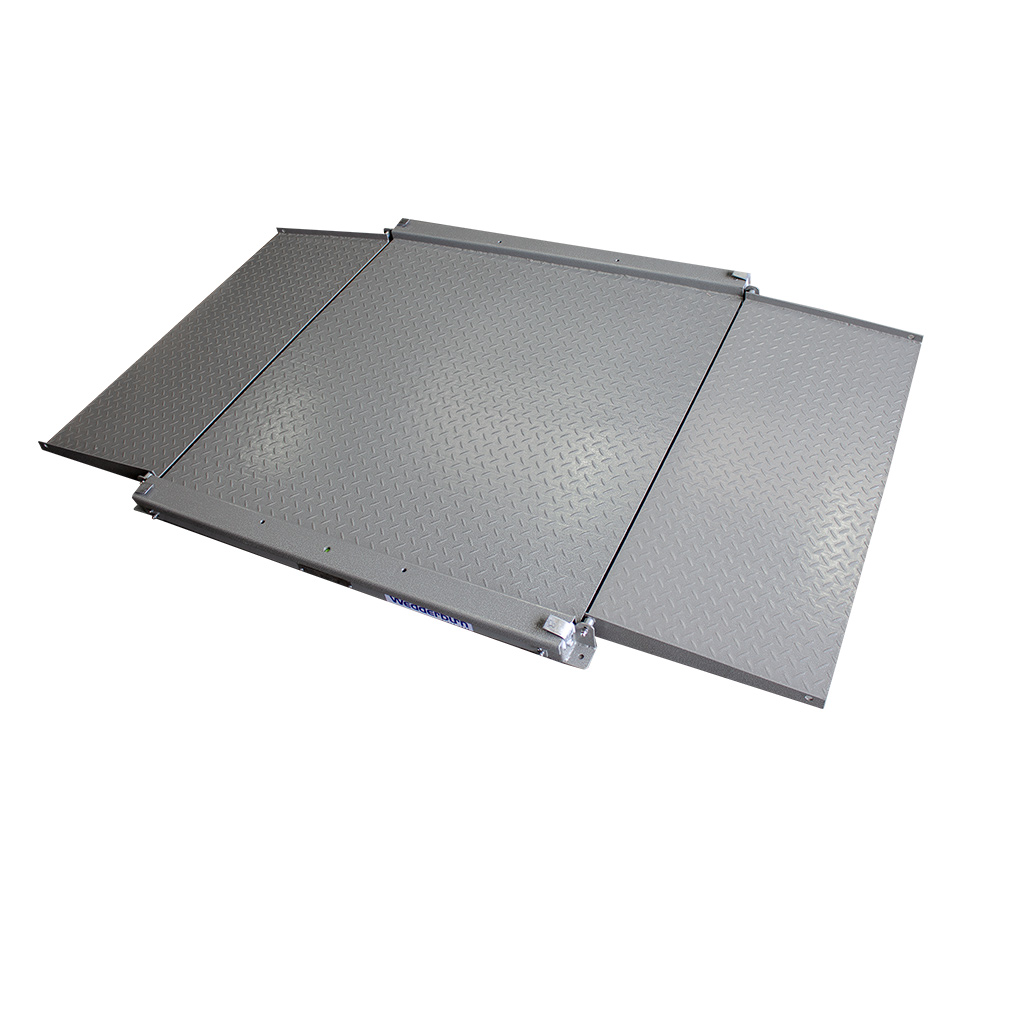

Robust industrial scale platforms with loading ramps that can be folded back when not in use. These heavy duty scale bases are constructed from mild steel, feature IP67 rated load cells and are trade approved in New Zealand. The heavy duty frame is designed to be bolted in one fixed location.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

WS01T1212MC05000300

Platform Size (mm): 1200 (W) x 1200 (D) x 50 (H)
Maximum Capacity: 300 kg
Graduation Interval: 0.1 kg

POA

WS01T1212MC05000600

Platform Size (mm): 1200 (W) x 1200 (D) x 50 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg

POA
