Mild Steel Scale Base ENQUIRE NOW BUY NOW

WS01P1515MC2000

Features
Specifications
Downloads
  • legal for trade use (TS1505.5)
  • trade approval applies when connected to an approved indicator
  • maximum approved divisions 3000 d/range
  • solid robust mild steel construction with powder coated finish
  • IP67 protection rating
  • heavy duty low profile weigh platform (110mm overall height)
  • ball and cup swivel mount levelling legs
  • 4 x 2000kg IP-67 alloy tool steel load cells
  • ideal for industrial applications and forklift loading



OPTIONS

  • on/off loading ramps (order code WS01PLR15)
Legal for Trade Use

Yes when connected to an approved indicator

(TS1505.5)

Capacity Choices Please select preferred option from Variations
Base Shape Square
Base Material Mild steel
Base Cover Material Mild steel
Frame Design Single frame
Platter Lift Mechanism Not available
Loading Ramps Optional (order code # WS01PLR15)
Environment Suitability Dry
Ingress Protection Rating IP67
Net Weight of Scale 123 kg

Mild Steel Scale Base ENQUIRE NOW BUY NOW

WS01P1515MC2000

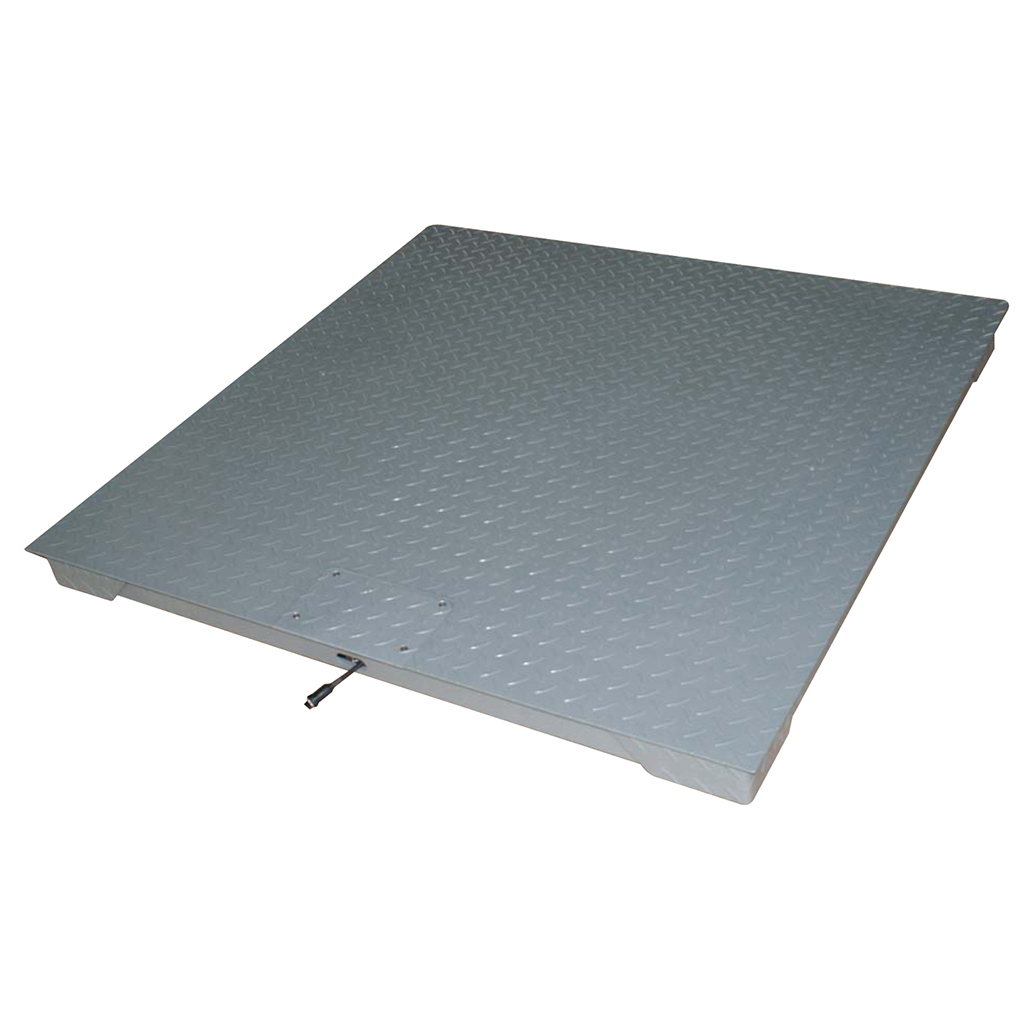

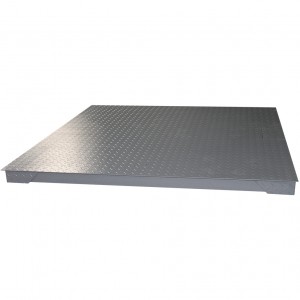

Solid and robust, these industrial scale bases feature large 1500mm x 1500mm platforms and weighing capacity up to 3000 kilos. They incorporate IP67 rated load cells, are ideal for heavy duty weighing applications and are trade approved in New Zealand.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

WS01P1515MC20001500

Platform Size (mm): 1500 (W) x 1500 (D) x 110 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg

POA

WS01P1515MC20003000

Platform Size (mm): 1500 (W) x 1500 (D) x 110 (H)
Maximum Capacity: 3000 kg
Graduation Interval: 1 kg

POA

Spare Parts / Options

On Off Loading Ramp WS01P1515MC

WS01PLR15

POA
