Mild Steel Scale Base ENQUIRE NOW BUY NOW
WS01P1218MC2000
- legal for trade use (TS1505.5)
- trade approval applies when connected to an approved indicator
- maximum approved divisions 3000 d/range
- solid robust mild steel construction with powder coated finish
- IP67 protection rating
- heavy duty low profile weigh platform (110mm overall height )
- ball and cup swivel mount levelling legs
- 4 x 2000 kg IP67 alloy tool steel load cells
- ideal for industrial applications and forklift loading
OPTIONS
- on/off loading ramps (order code # WS01PLR)
| Legal for Trade Use |
Yes when connected to an approved indicator (TS1505.5) |
| Capacity Choices | Please select preferred option from Variations |
| Base Shape | Rectangular |
| Base Material | Mild steel |
| Base Cover Material | Mild steel |
| Frame Design | Single frame |
| Platter Lift Mechanism | Not available |
| Loading Ramps | Optional (order code # WS01PLR) |
| Environment Suitability | Dry |
| Ingress Protection Rating | IP67 |
| Net Weight of Scale | 130 kg |
Mild Steel Scale Base ENQUIRE NOW BUY NOW
WS01P1218MC2000

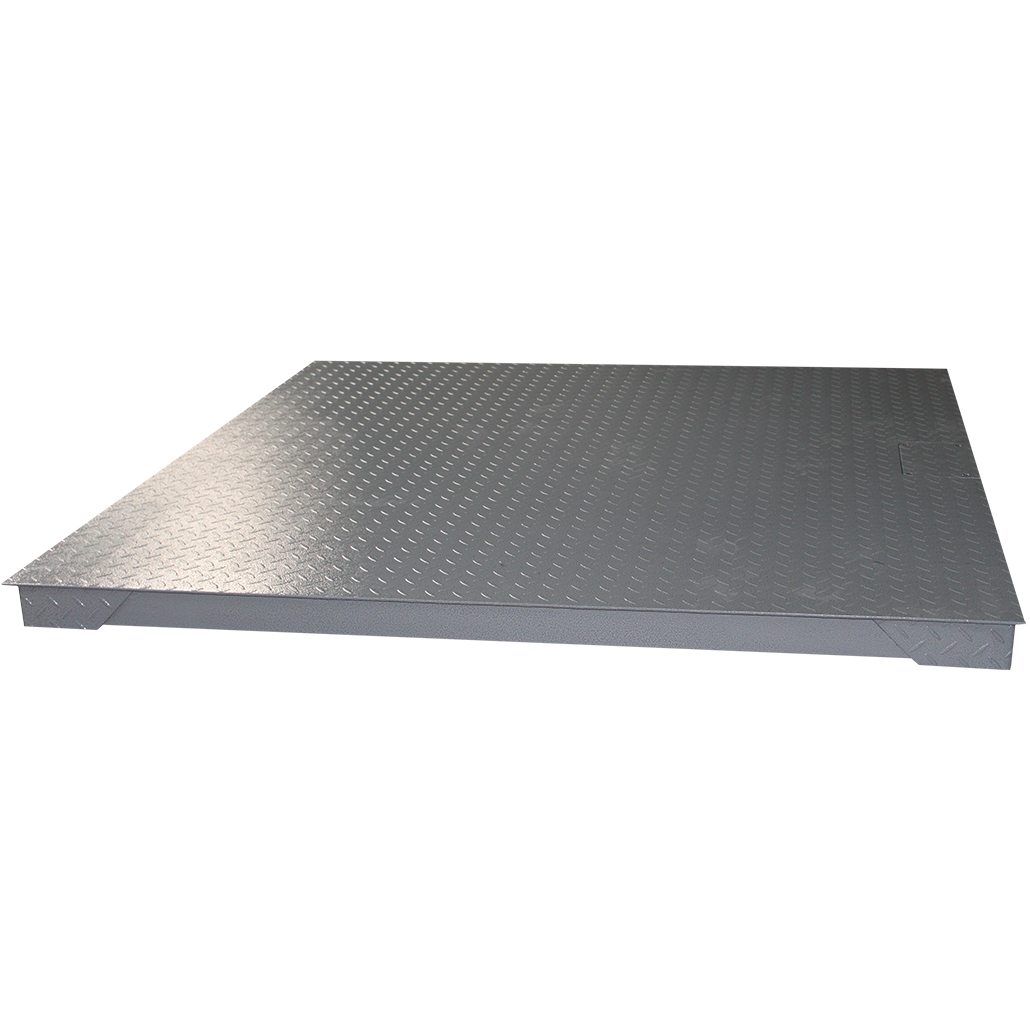

Solid and robust, these industrial scale platforms are ideal for industrial weighing applications and forklift loading. Constructed from mild steel, they incorporate IP67 rated load cells, are trade approved in New Zealand and have the option of adding loading ramps.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
WS01P1218MC20001500
Platform Size (mm): 1200 (W) x 1800 (D) x 110 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg
POA
WS01P1218MC20003000
Platform Size (mm): 1200 (W) x 1800 (D) x 110 (H)
Maximum Capacity: 3000 kg
Graduation Interval: 1 kg
POA
