Industrial Scale Indicator ENQUIRE NOW BUY NOW

DNEGT8

Features
Specifications
Downloads
  • legal for trade use (TS2147)
  • trade approval applies when this indicator is connected to approved weighing base
  • 8 Inch (160 mm x 120 mm) colour touch screen
  • resistive touch panel (for operation with gloves)
  • IP68 Water rating
  • adjustable wall or desk bracket included
  • RTC (real time clock)
  • fast A/D convertor for superior weight settle time
  • control up to 16 loadcells or 4 separate scale base connections
  • 240 Volt mains supply
  • connects to a range of software packages
  • numerous software and interface options available

Please download the product brochure for customisation and firmware options.

Legal For Trade Use Yes when connected to an approved scale base
TS# 2147
Max Approved Divisions 10,000 (single) 3 x 3,000 (multi-range)
Max Divisions (Non-Approved) 1,000,000
Number of Ranges 3
Minimum Sensitivity per Division 0.3µV/e
Main Display Size 160 x 120 mm (8 inch)
Second Display Size NA
Backlight Yes
Mounting Options Wall, desk and pole
Inputs / Outputs

2 Inputs (expandable to 8)

4 Outputs (expandable to 16)

Setpoints Yes - 3
Communication Protocol

RS232 / RS485

Ethernet

4-20mA or 0-10V (optional)

Built-in Printer No
Counting Function Yes (AF02)
Check Weighing Function Yes
Environment Suitability Dry or wet
Ingress Protection Rating IP68
Power Source 240 V
Battery Option No
Overall Dimensions (mm) 328 (W) x 129 (D) x 243 (H)
More Features Available Yes

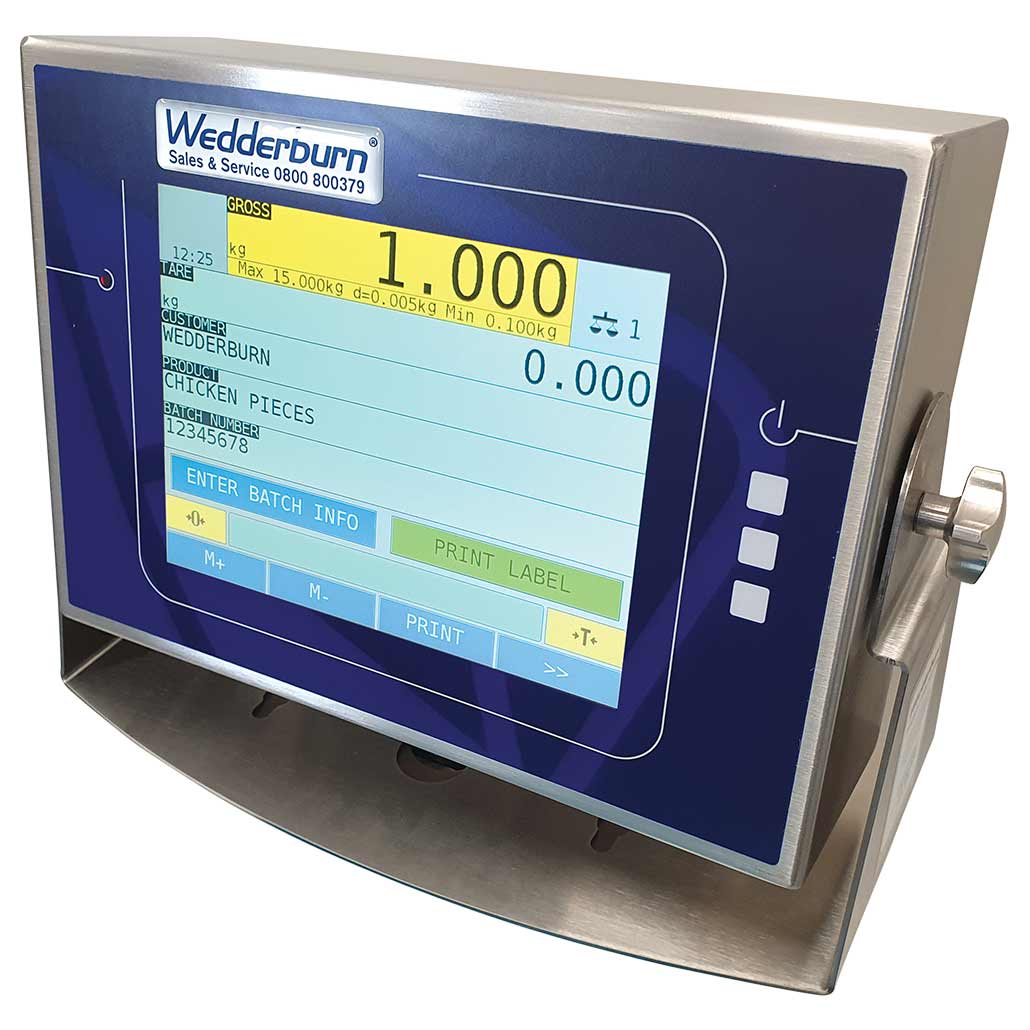

Industrial Scale Indicator ENQUIRE NOW BUY NOW

DNEGT8

The DNEGT8 is a trade certified industrial indicator designed to be used in a wide range of applications. It’s flexible configuration allows it to be customised to suit your specific needs. With a library of available firmware versions it can be used for simple weighing, article selection, batch recording, data capture, various tare options, multiple scale connections and a huge range of communication protocols to suit the needs of modern businesses.

If your requirement is either weighing articles, data collection, target weighing, price computing for large packs, piece counting, controlling doses or interfacing with a PLC, the DNEGT8 indicator is the best option to suit your weighing requirements.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

Industrial Scale Indicator

Minimum Sensitivity / Division: 0.3 µV/e
Max Approved Divisions: 10000 (single) 3 x 3000 (multi-range)
Overall Dimensions (mm): 328 (W) x 243 (H) x 129 (D)
POA
