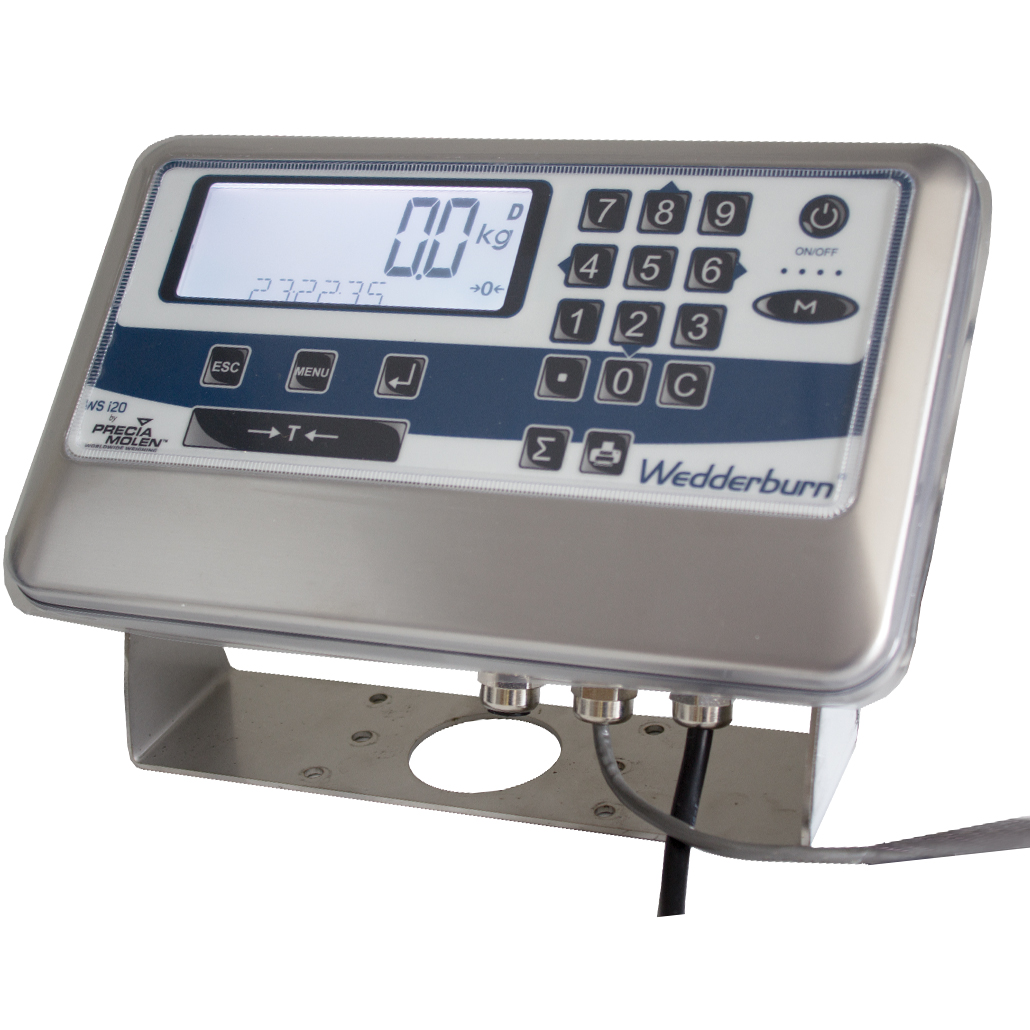

Digital Scale Indicator ENQUIRE NOW BUY NOW
WSI20
- legal for trade use (MCA # 2173)
- trade approval applies when this indicator is connected to approved weighing bases
- single or dual range
- stainless steel housing with IP66 rating
- large easy to read alphanumeric display with weight characters 25mm high and additional information 8mm high new colour FSC-LCD technology
- 2 Digital Inputs and 4 set point outputs
- functions include, counting, check weighing, formulation and calculation
RS232 and USB communication interface - includes bracket for desk, wall or pole mounting
OPTIONS
- alibi memory 200 items (Part # WSI20MEM)
- ethernet TCP/IP interface (Part # WSI20ETH)
- IP69K protection model available on indent
- RS485 communication interface
- rechargeable battery (Part # WSI20BAT)
- receipt printer
| Legal For Trade Use | Yes when connected to a trade approved scale base |
| MCA# | 2173 |
| Max Approved Divisions | 6,000 d per range |
| Max Divisions (Non-Approved) | 30,000 |
| Number of Ranges | Single or dual interval |
| Minimum Sensitivity per Division | 0.5µV/d |
| Main Display Size | 25 mm |
| Second Display Size | 8 mm |
| Backlight | Yes, multiple selections |
| Mounting Options | Wall, desk and pole bracket |
| Inputs / Outputs | 2 inputs, 4 outputs |
| Setpoints | Yes |
| Communication Protocol | RS232, USB, Ethernet optional |
| Built-in Printer | No |
| Counting Function | Yes |
| Check Weighing Function | Yes |
| Environment Suitability | Dry |
| Ingress Protection Rating |
IP66 IP69K model available |
| Power Source | 230V |
| Battery Option | Optional |
| Overall Dimensions (mm) | 252 (W) x 58 (D) x 148 (H) |
| More Features Available | Yes |
Digital Scale Indicator ENQUIRE NOW BUY NOW
WSI20
The WSI20 Digital Scale Indicator has been designed for industrial use, constructed of high quality 304L grade stainless steel and has an IP66 protection rating. The WSI20 features the latest technology including alpha numeric Field Sequential Colour (FSC) LCD display and a choice of communication interfaces. Standard functions include counting, check weighing, calculation and formulation.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
Digital Scale Indicator
Minimum Sensitivity / Division: 0.5µV/d
Max Approved Divisions: 6000 per range
Overall Dimensions (mm): 252 (W) x 58 (D) x 148 (H)
POA
