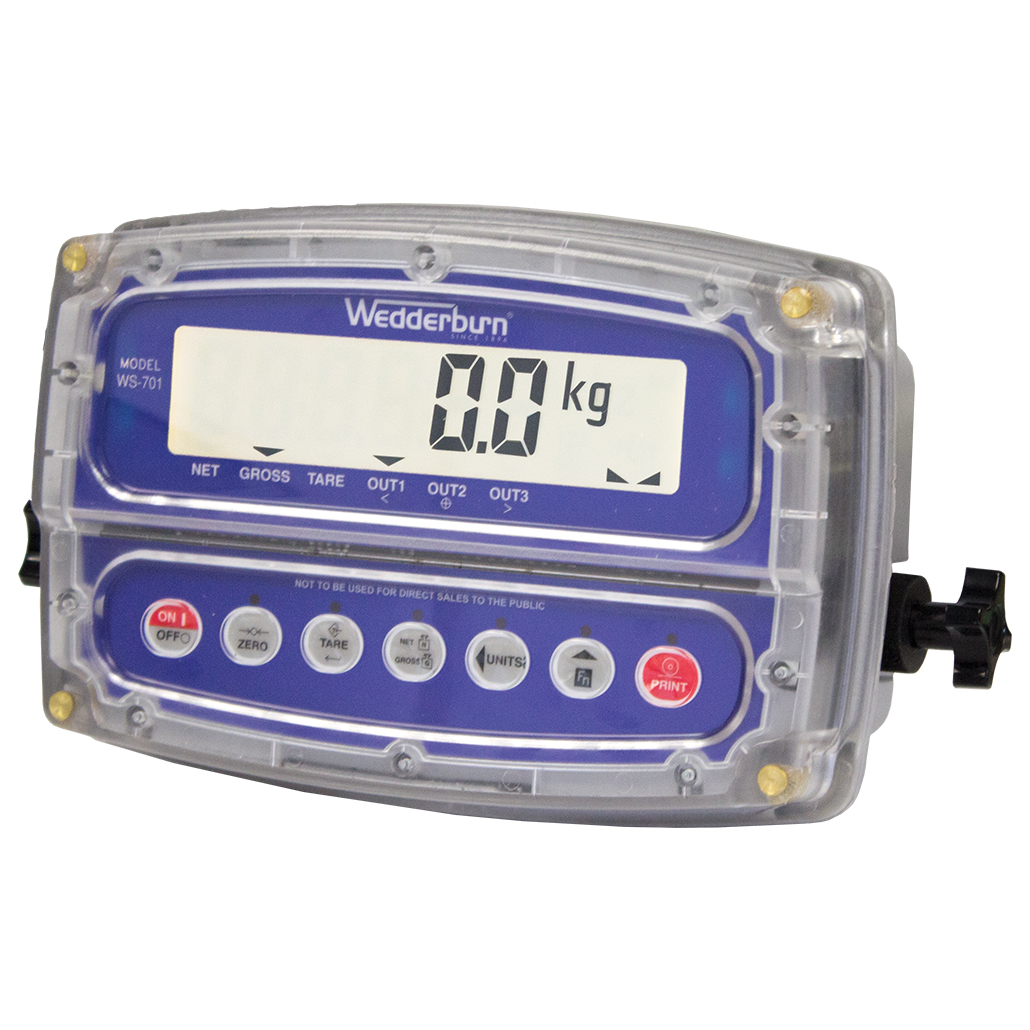

Digital Scale Indicator ENQUIRE NOW BUY NOW

WS701

Features
Specifications
Downloads
  • legal for trade use (TS2062)
  • trade approval applies when this indicator is connected to approved weighing bases
  • single range
  • polycarbonate housing rated IP69K
  • large 25 mm high clearly visible LCD which changes colour automatically as the pre-assigned target weights are reached
  • capacitive touch keys allow the front of the panel to be constructed as a single piece. The keypad senses the operator’s finger from the inside of the enclosure
  • ultra-touch enclosure provides total protection from sharp objects
  • with an IP69K rating - the highest protection rating possible which has been designed for high pressure water jet cleaning at temperatures of up to 176 ºF / 80 ºC
  • versatile power options: AC or DC
  • built-in RS232 communications port

OPTIONS

  • DC power and rechargeable battery (order code GY1541)
Legal For Trade Use Yes when connected to a trade approved scale base
TS# 2062
Max Approved Divisions 10,000
Max Divisions (Non-Approved) 240,000 (0.15µV/d)
Number of Ranges Single Interval
Minimum Sensitivity per Division 0.5µV/d
Main Display Size 25 mm
Second Display Size NA
Backlight Yes - multiple selections
Mounting Options Wall, desk and pole bracket
Inputs / Outputs 3 outputs
Setpoints Yes (3)
Communication Protocol RS232
Built-in Printer No
Counting Function No
Check Weighing Function Yes
Environment Suitability Dry, wet or harsh  (-10 ºC - 40 ºC)
Ingress Protection Rating IP69K
Power Source 230 V
Battery Option Optional
Overall Dimensions (mm) 291 (W) x 102 (D) x 183 (H)

Digital Scale Indicator ENQUIRE NOW BUY NOW

WS701

Digital Scale Indicator suitable for use in high temperature, high pressure washdown environments. The large LCD changes colour automatically as weight targets are reached. Perfect for food processing, chemical or pharmaceutical industry - almost any harsh application environment.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

Digital Scale Indicator

Minimum Sensitivity / Division: 0.5µV/d
Max Approved Divisions: 10000
Overall Dimensions (mm): 291 (W) x 102 (D) x 183 (H)
POA
