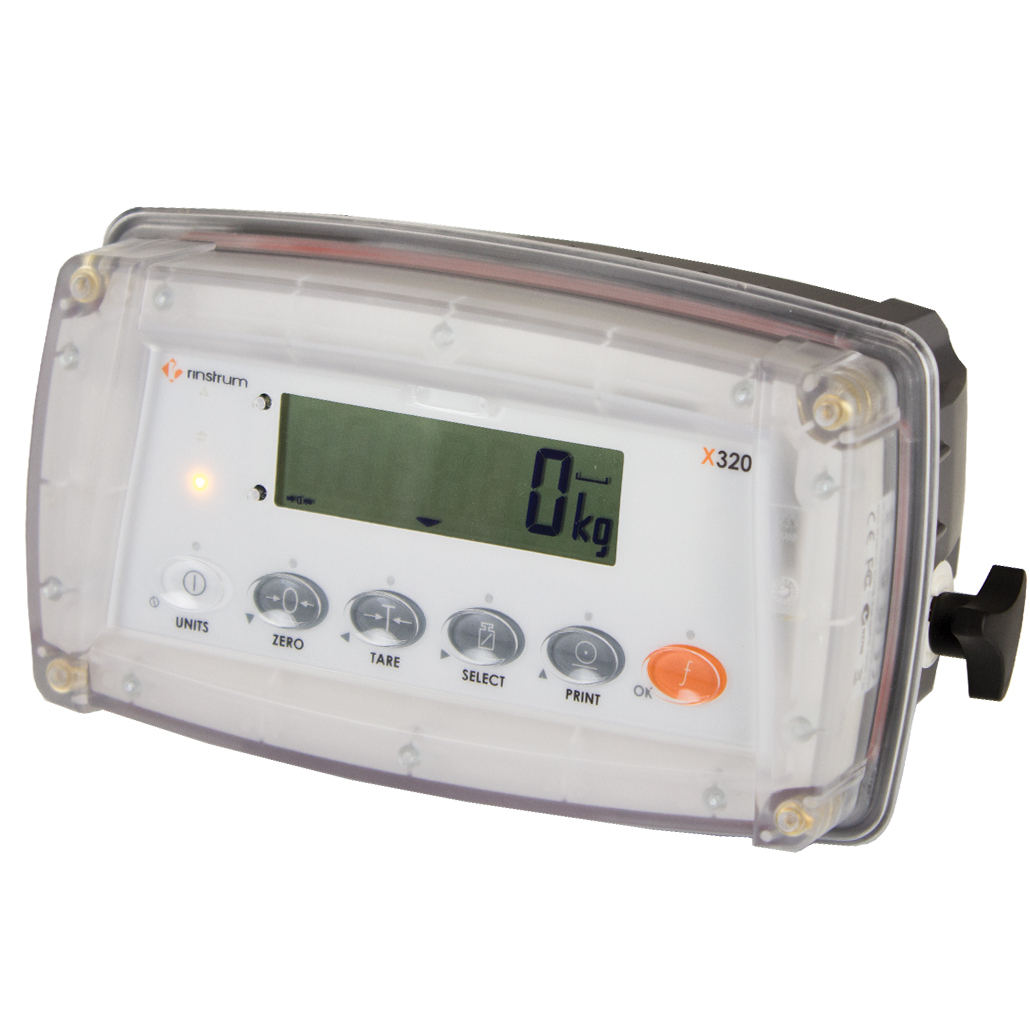

Digital Scale Indicator ENQUIRE NOW BUY NOW

RIX320 Series

Features
Specifications
Downloads
  • legal for trade use (TS1736)
  • trade approval applies when this indicator is connected to approved weighing bases
  • single or dual range
  • impact resistant composite housing rated up to IP69K depending on the installation
  • clear highly visible 20 mm high LCD display with green LED backlight
  • high / ok / low function
  • built to withstand high pressure water jets (1400 psi) at high temperatures (up to 80 ºC) from multiple angles
  • choice of AC & DC or internal rechargeable battery (model dependent - refer to specifications tab)
  • programmable function key and configurable printing
  • built-in RS232 communications port
  • mounting options; stainless steel desk/wall mount and pole mount
Legal For Trade Use Yes when connected to an approved scale base
TS# 1736
Max Approved Divisions 4,000 d per range
Max Divisions (Non-Approved) 30,000
Number of Ranges Single or dual interval
Minimum Sensitivity per Division 0.8µV/d
Main Display Size 20 mm
Second Display Size NA
Backlight Yes - green
Mounting Options Wall, desk and pole bracket
Inputs / Outputs 2 Outputs
Setpoints Yes (Low, OK, High)
Communication Protocol RS232
Built-in Printer No
Counting Function Yes
Check Weighing Function Yes
Environment Suitability Dry or wet
Ingress Protection Rating IP69K
Power Source

RIX320 = AC & DC

RIX320-BATT = Internal Rechargeable Battery

Overall Dimensions (mm) 250 (W) x 110 (D) x 163 (H)
More Features Available Yes

Digital Scale Indicator ENQUIRE NOW BUY NOW

RIX320 Series

Digital waterproof Digital Scale Indicator with IP69K protection rating suitable for using in wet and harsh operating environments. Trade approved in New Zealand when connected to trade approved bases. Serial data communication using RS232 port.

Two power options to choose from; RIX320 (AC & DC power) OR RIX320-BATT (internal rechargeable battery)

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

RIX320

Minimum Sensitivity / Division: 0.8µV/d
Max Approved Divisions: 4000 per range
Overall Dimensions (mm): 250 (W) x 110 (D) x 163 (H)

POA

RIX320-BATT

Minimum Sensitivity / Division: 0.8µV/d
Max Approved Divisions: 4000 per range
Overall Dimensions (mm): 250 (W) x 110 (D) x 163 (H)

POA
