Digital Scale Indicator ENQUIRE NOW BUY NOW

RIR427

Features
Specifications
Downloads
  • legal for trade use (TS1813)
  • trade approval applies when this indicator is connected to approved weighing bases
  • single range
  • stainless steel housing with IP66 rating
  • large easy to read dual line LCD display with green LED backlight; 29 mm high numeric and 18 mm high text
  • comes preloaded with K402 firmware
  • memory to store up to 250 PLU’s
  • 3 programmable keys
  • custom print string for connecting to label printer
  • clock/date, counting, peak hold, manual hold total functions
  • RS232 output module for serial communication
  • stainless steel bracket for desk, wall or pole mounting enables indicator to be tilted for easy reading

OPTIONS

  • see product brochure for custom build options including; comms, set points, output, data storage
  • OptoLink cable for data extraction available on request (part #RIA10012)
  • rechargeable battery is available as a factory fitted option, available on indent
  • panel mount option available on indent
Legal For Trade Use Yes when connected to an approved scale base
TS# 1813
Max Approved Divisions 10,000
Max Divisions (Non-Approved) 100,000
Number of Ranges Single interval
Minimum Sensitivity per Division 0.7µV/d
Main Display Size 28.4 mm
Second Display Size 17.6 mm
Backlight Yes - green
Mounting Options Wall, desk or pole bracket
Inputs / Outputs Up to 32 I/O (Model RIM4201)
Setpoints Yes
Communication Protocol

RS232

Optional Communication Protocol Optional; USB, Ethernet, 4-20mA or 0.10V
Built-in Printer No
Counting Function Yes
Check Weighing Function Yes
Environment Suitability Dry or Wet
Ingress Protection Rating IP66
Power Source 230V AC or 12-24V DC
Battery Option Optional battery must be factory fitted
Overall Dimensions (mm) 323 (W) x 162 (D) x 213 (H)

Digital Scale Indicator ENQUIRE NOW BUY NOW

RIR427

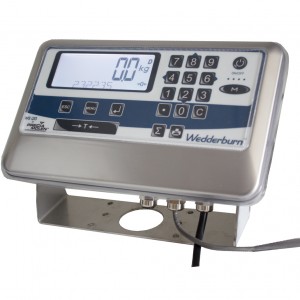

A robust stainless steel scale indicator with superior quality IP66 housing & RS232 I/O module designed for direct connection to PLC’s or PC. Suitable for general purpose trade weighing, multiple indicator weighing systems and process control. It features a large easy to read multi-line LCD display that can show the item name, current weight and target weights. The addition of batching firmware enables dedicated batch status indicator to be used (requires batching firmware).

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

Digital Scale Indicator

Minimum Sensitivity / Division: 0.7µV/d
Max Approved Divisions: 10000
Overall Dimensions (mm): 323 (W) x 162 (D) x 213 (H)
POA
