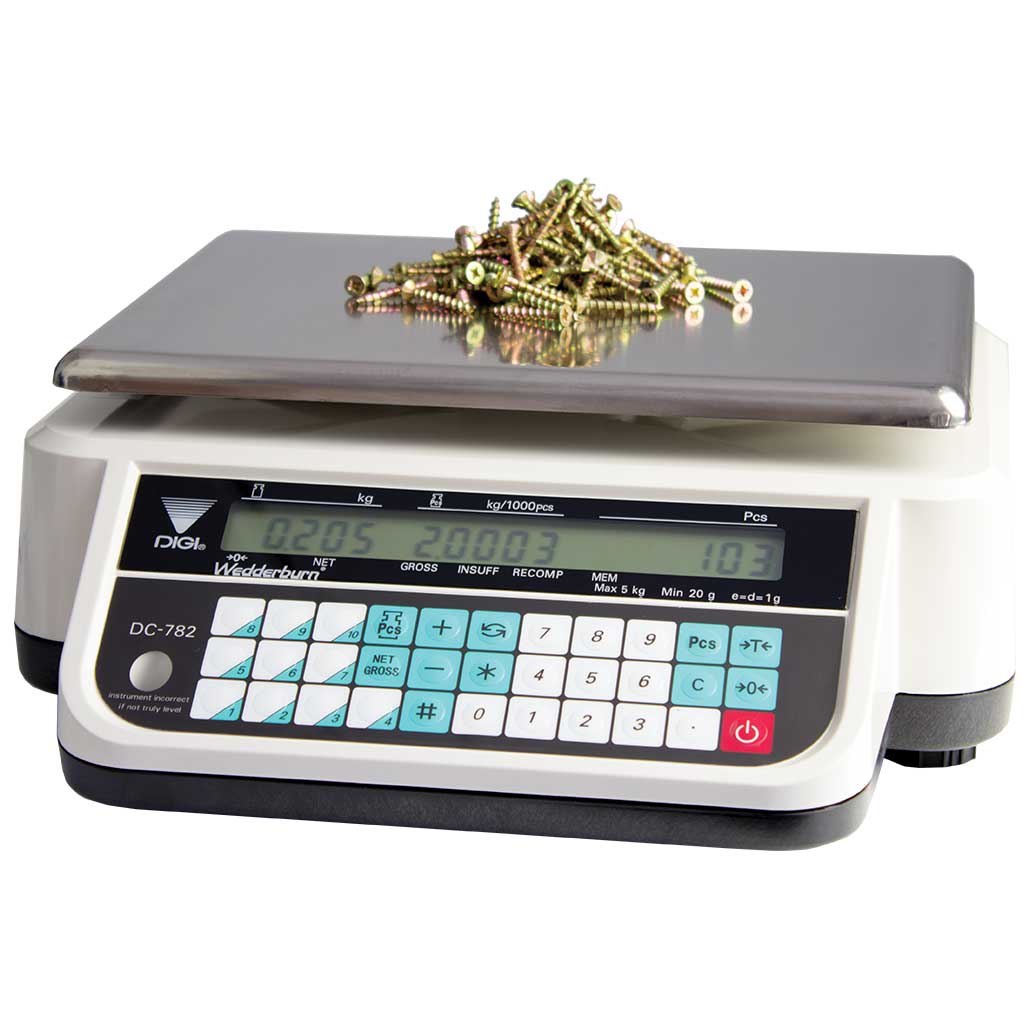

Digital Counting Scale ENQUIRE NOW BUY NOW
TSDC782
- high accuracy counting performance for a wide range of items from very light electronic components to larger parts
- high counting sensitivity with internal resolution of 1/1,000,000 and display resolution of 1/5,000
- front and rear displays with bright contrast LCD and backlight
- 25 item code memory keyboard
- 10 preset keys
- automatic recomputing to increase sampling accuracy
- total amount accumulation or subtraction
- net weight / gross weight display
- programmable setpoints for over/under counting or weighing
- negative sampling, counting capability
- data output with the optional RS232 interface
- AC mains power with optional built-in rechargeable battery
OPTIONS
- built-in rechargeable battery that provides portability and up to 500 continuous use with no backlight or RS232 output
Each scale supplied with:
1 x power adaptor
| Legal for Trade Use | No |
| Capacity Choices | Please select the relevant option from Variations |
| Scale Type | Bench |
| Type of Display | Digital Backlit LCD |
| Number of Displays | 2 (front and back) |
| Weighing Units | kg |
| Checkweighing Function | Yes |
| Counting Function | Yes |
| Counting Resolution | 1/1,000,000 |
| Display Resolution | 1/5,000 |
| Power |
Mains Power Optional Rechargeable Battery |
| Environment Suitability |
Dry |
| Comms Port |
RS232 |
What is the difference between a "Counting Scale" and a scale that has a "Counting Function"?
There are significant differences between Counting Scales and Bench or Floor Scales with Counting Functionality and the differences impact both performance and price. Read our helpful guide on key differences before making your purchasing decisions. Understanding Counting Scales Guide
Is this Counting Scale legal for trade use?
No, under New Zealand's Trade Measurement Standards, it is not permissible to certify Counting Functions of Scales legal for trade use.
What is the best sample size to use?
The sample size is relative to the final quantity you wish to count. If you want to count small quantities (100 pcs), then a sample size of 10 pieces is sufficient. If your final count quantity is large, then a larger sample will increase the counting accuracy.
Why do I get inconsistent counting results for quantities of the same product?
Counting inconsistencies are generally a result of poor sample sizes. Use a larger sample size to calculate the unit weight to increase counting accuracy. A counting scale's accuracy is determined by the accuracy of the parts it is counting. Parts with a large weight variance will result in higher counting errors.
Digital Counting Scale ENQUIRE NOW BUY NOW
TSDC782
TSDC782 Digital Counting Scales feature two displays (front and back) and deliver highly accurate counting performance with an internal counting resolution of 1/1,000,000. Suitable for a wide range of item from very light componentry to heavy and large items. Our Counting Scales take the hassle out of counting parts and pieces, and when compared to manual counting methods, they reduce time spent and improve accuracy.
Each scale includes: 1 power adaptor
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
TSDC782001K
Platform Size (mm): 300 (W) x 225 (D)
Maximum Capacity: 1 kg
Graduation Interval: 0.2 g
$695.00
TSDC782005K
Platform Size (mm): 300 (W) x 225 (D)
Maximum Capacity: 5 kg
Graduation Interval: 1 g
$695.00
TSDC782010K
Platform Size (mm): 300 (W) x 225 (D)
Maximum Capacity: 10 kg
Graduation Interval: 2 g
$695.00
TSDC782025K
Platform Size (mm): 300 (W) x 225 (D)
Maximum Capacity: 25 kg
Graduation Interval: 5 g
$695.00
