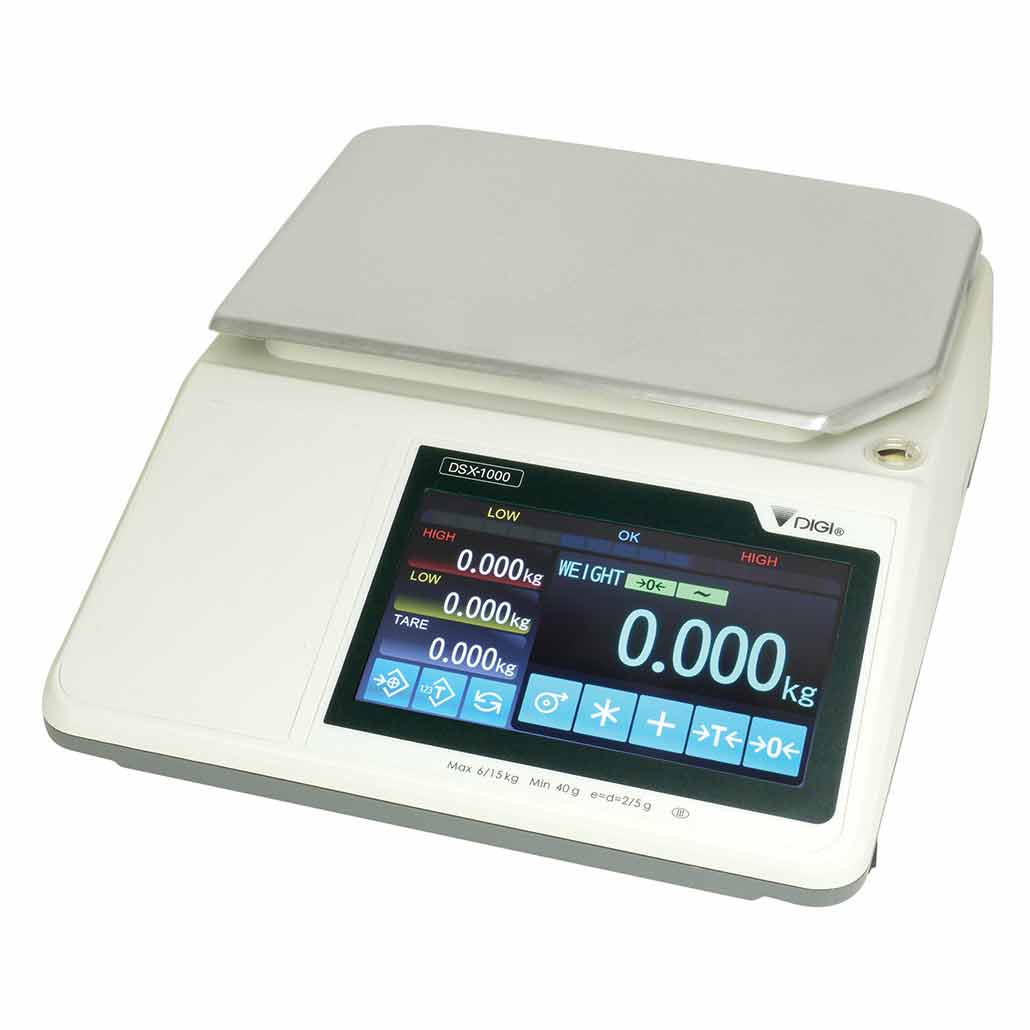

Check Weighing Bench Scale ENQUIRE NOW BUY NOW
TSDSX1000
- legal for trade use (TS2372)
- quick response to weight changes
- 7.0 inch high resolution TFT LCD touch panel operator display with backlight
- splash resistant housing
- Lo / OK / Hi check weighing function with built-in visual and audible response
- three colour bar graph provides operator with visual feedback
- RS232 interface for pc connectivity
- compatible with DI-CONNECT data communication software
- 240V AC power
- net weight 2.4 kg
| Legal for Trade Use | Yes (TS2372) |
| Capacity Choices | Please select the relevant option from Variations |
| Scale Type | Bench |
| Type of Display | Digital LED Touch Screen |
| Number of Displays | 1 |
| Weighing Units | g, kg |
| Checkweighing Function | Yes, with colour changing bar graph and audible alarm |
| Counting Function | No |
| Environment Suitability | Dry |
| Comms Ports | RS232, Setpoint (2) |
Check Weighing Bench Scale ENQUIRE NOW BUY NOW
TSDSX1000
Designed to increase productivity in check weighing applications, offering a high resolution colour touch screen display, audible alarm, visual bar graph to let operators know when they are getting close to the target weight, super-fast weighing response and a range of weighing capacities.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
TSDSX1000600G
Platform Size (mm): 271 (W) x 198 (D)
Maximum Capacity: 0.6 kg
Graduation Interval: 0.1 g / 0.2 g
POA
TSDSX10001K5
Platform Size (mm): 271 (W) x 198 (D)
Maximum Capacity: 1.5 kg
Graduation Interval: 0.2 g / 0.5 g
POA
TSDSX10003K
Platform Size (mm): 271 (W) x 198 (D)
Maximum Capacity: 3 kg
Graduation Interval: 0.5 g / 1 g
POA
TSDSX10006K
Platform Size (mm): 271 (W) x 198 (D)
Maximum Capacity: 6 kg
Graduation Interval: 1 g / 2 g
POA
TSDSX100015K
Platform Size (mm): 271 (W) x 198 (D)
Maximum Capacity: 15 kg
Graduation Interval: 2 g / 5 g
POA
TSDSX100030K
Platform Size (mm): 271 (W) x 198 (D)
Maximum Capacity: 30 kg
Graduation Interval: 5 g / 10 g
POA
