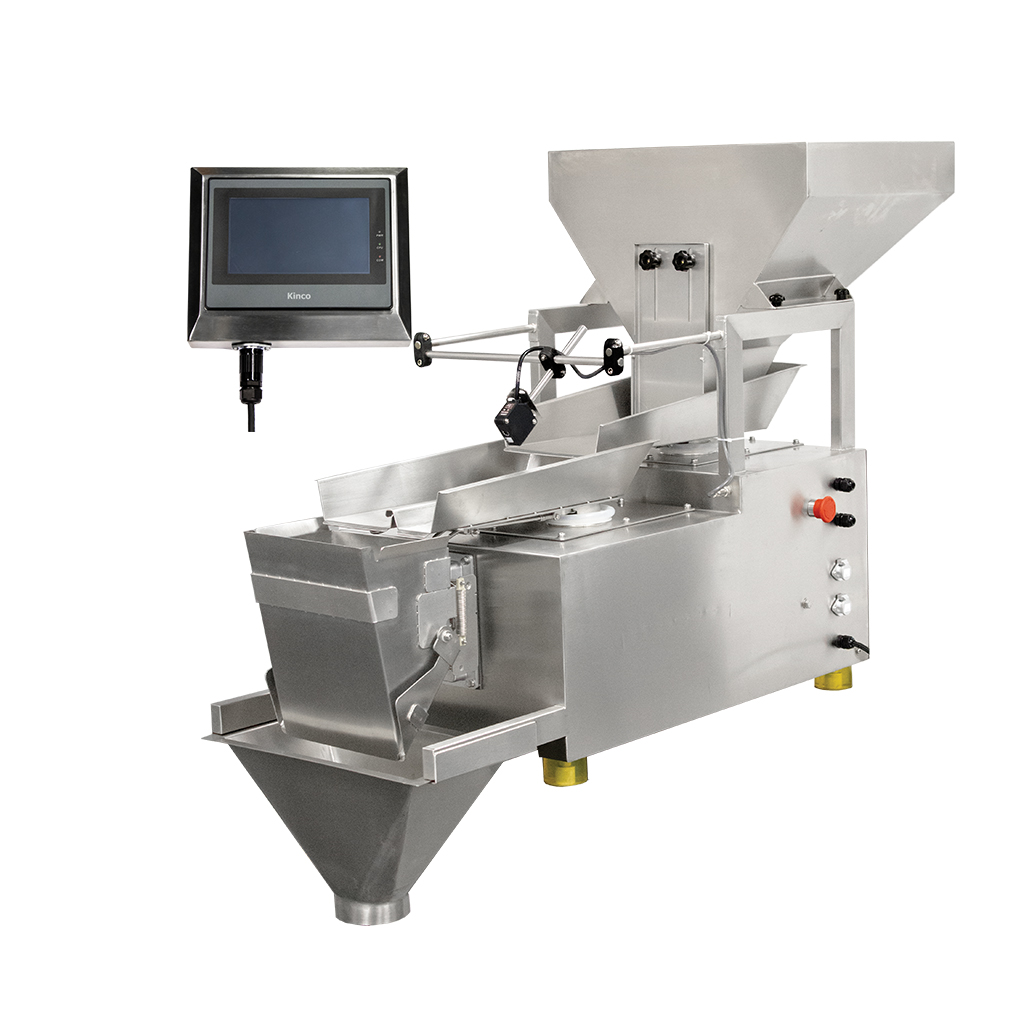

Single Head Linear Weigher 5 Litre ENQUIRE NOW BUY NOW
WLW1-3-5L-S
Features
Specifications
Downloads
- utilises three separately controlled vibration pans and high precision weighing load cells
- most commonly used for semi-automatic operation or small production requirements
- stepping motor drives the weigh bucket, eliminating the need for pneumatic air supply
- automatic dump cycle or manual mode activated with the foot pedal that is included
- conveniently stores up to 10 preset programmes
- settings can be changed whilst the unit is operating giving you control over weights, dump loads, and speed
- authority levels can be set controlling what users have access to so that security and data integrity can be maintained
- quickly disconnect the hopper, weigh bucket and funnel without the need for special tooling to save time when cleaning the unit or changing products
- standalone unit that can be set on table top or optional floor stand and interfaced with auxiliary equipment
- three separate pan vibration settings
- adjustable dwell time for weigh bucket door opening
- food grade stainless steel for contact parts
OPTIONS
- larger capacity hopper (factory option)
- dimple finish (factory option)
- 100 mm to 80 mm reducer (order code GY4108)
- 100 mm to 60 mm reducer (order code GY4109)
- 100 mm to 40 mm reducer (order code GY4129)
- cantilever stand (order code WLWCSTAND)
- hopper vibrating kit - requires air (order code WLWVIBRATE)
| Holding Hopper Volume | 50 litres |
| Weigh Bucket Maximum Capacity | 3 kg / 5 litres |
| Weighing Accuracy | 0.2 - 5 g |
| Range of Single Bag Weight | 100 g - 3 kg |
| Maximum Speed | 15 packs per minute |
| Product Feed System | Vibration |
| Number of Weigh Heads | 1 |
| Operator Panel | 7 inch colour touch screen |
| Preset Programs | 10 |
| Power Required | Single Phase (AC220V ±10%) |
| Air Required | No |
| Overall Dimensions (mm) | 500 (L) x 1175 (W) x 840 (H) |
| Net Weight of Machine | Approx 100 kg |
Single Head Linear Weigher 5 Litre ENQUIRE NOW BUY NOW
WLW1-3-5L-S
The WLW1-3-5L-S Compact Linear Weigher is ideal for repetitive filling regular shaped dried foodstuffs such as tea, sugar, coffee powder or beans, seeds, nuts, rice, pasta, milk powders, spices and confectionery etc.
The three pan system gives users more control for weighing at high speed with high accuracy. Efficiently fills up to 15 bags per minute.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
Single Head Linear Weigher 5 Litre
POA
