Integrated Weigh Wrap Labeller ENQUIRE NOW BUY NOW

AW5600AT2AI

Features
Specifications
Downloads
  • legal for trade use
  • low noise design reduces operational noise
  • easy to clean auto-infeed unit
  • production orders can be sent from the back office and displayed on the operator display for efficient production
  • easy to use with large 15” full colour touch screen and on-screen help messages
  • capable of wrapping trays up to 150 mm high
  • weighs, wraps, prices and labels an impressive speed of up to 36 packs per minute
  • wide 300dpi thermal head allows more detail to be printed on labels up to 80mm wide
  • accurate label placement that can be programmed for each PLU
  • engineered to use new environmentally conscious linerless labels
  • free-layout function keys allow users to customise the key layout
  • fast PLU file communication via Ethernet
  • RF capable for a cable-free environment

OPTIONS

  • wireless communications interface (part code BL9898)
  • several labeller options: main, second, POP and bottom
  • total labeller used to print total labels for shipping cartons
  • external console to operate the wrapper remotely
  • various outfeed directions available; front (standard), back (optional), side (optional)



Legal For Trade Use Yes
Capacity 6 / 15 kg x 2 / 5 g (multi-interval)
Package Size*

130 - 380 wide

10 - 150 high

80 - 254 deep

Wrapping Speed Maximum 36 packs per minute
Number of Film Rolls One
Film Width (mm) 300 - 450
Film Length (mm) Maximum 1,500
Label Type

Thermal paper die cut labels

Thermal paper linerless labels available as a factory fitted option. Linerless label dimensions are available on the downloadable product brochure.

Label Width 40 - 80 mm for die cut labels
Label Length 28 - 105 mm for die cut labels
Label Roll Diameter Maximum 210 mm
Label Core Diameter 76 mm
Display Panel 15 inch TFT colour
Keypad Pictogram or English
Programmable Items PLU no., commodity name, ingredient, unit price, price, tare weight, sell-by-date, taste-by-date, department name, barcode (UPC, EAN), target weight, special message, advertising message, shop name & logo, extra print format, wrapping conditions, etc.
Power Source Single Phase, 220 - 240 VAC, 50 Hz, 1.5 kw
Overall Dimensions (mm) Dimensions will vary depending on configurations. See brochure for more details.
Net Weight Approximately 490 kg (single labeller and auto-infeed)

* the maximum combination of the above Package Size Dimensions is not available and the available package size depends on the film width.



Integrated Weigh Wrap Labeller ENQUIRE NOW BUY NOW

AW5600AT2AI

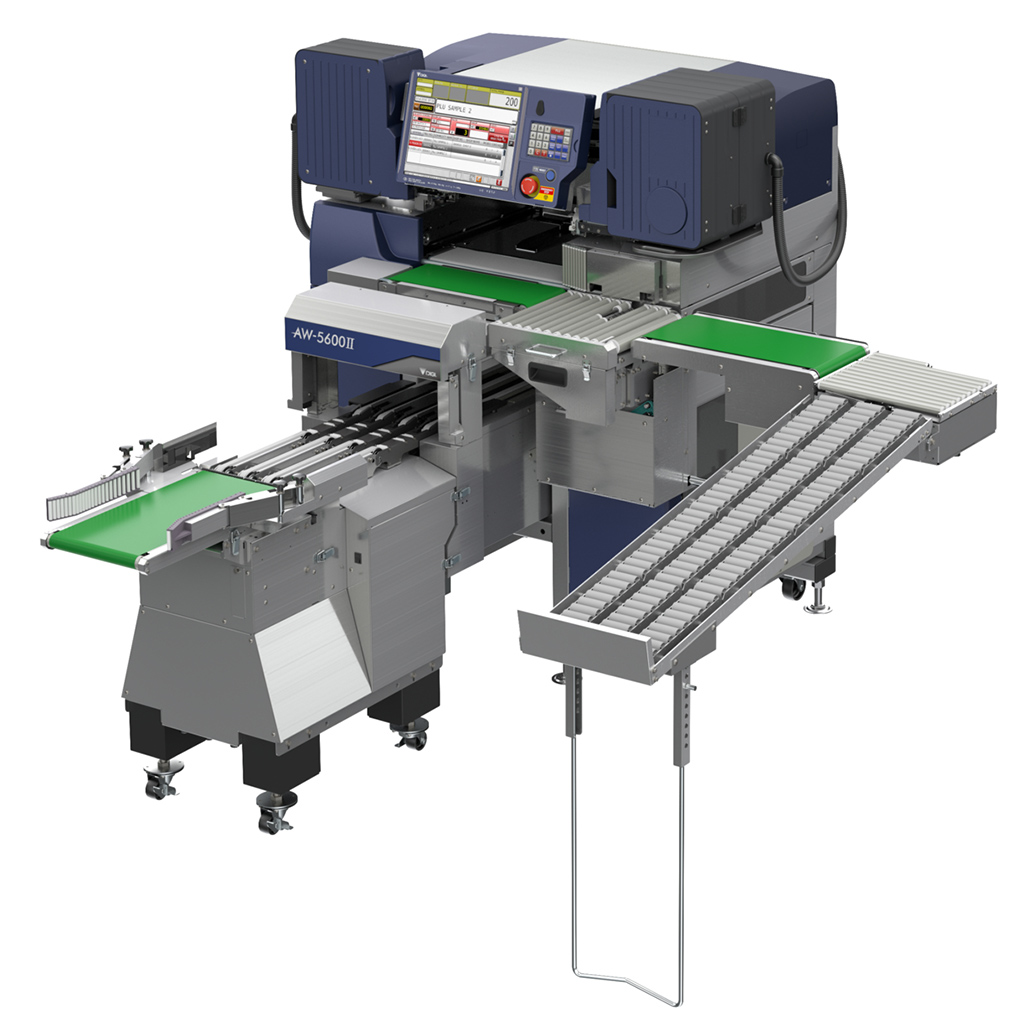

The AW5600AT2AI Fully Automatic and Integrated Weigh Wrap Price Labeller features enhanced automation options elevating it into a class of its own.

In addition to weighing, wrapping, calculating pack price and labelling all in one efficient pass, the new automatic infeed feature improves food packing efficiency and sets the foundation for further automation vital in high-speed high-volume food packaging. And it's Legal for Trade Use in New Zealand.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

Integrated Weigh Wrap Labeller

Capacity: 6 kg / 15 kg
Maximum Wrapping Speed: 36 packs per minute
Graduation Interval: 2 g / 5 g
POA
