In-Line Checkweighing System ENQUIRE NOW BUY NOW
TSXCG2000G
- quiet and smooth belt operation
- removable belt assembly allows easier egress for cleaning
- left or right models depending on factory flow
- live on-screen statistical data for instant production review
- option of integrated or external rejector systems
- a wide range of rejector types depending on product characteristics
- stainless steel construction
FACTORY FITTED OPTIONS:
- IP65 upgrade
- reject collection bin
- reject confirmation sensor
- separate rejector conveyor
- drop rejection conveyor
- blue belts
| Weighing Capacity | 2 kg |
| Weighing Accuracy | 1 gram |
| Weighing Increments | 0.2 gram |
| Number of Programs | 100 |
| Interface | 8.4 inch touch screen |
| Conveyor Speed (max) | 75 m per minute |
| Belt Width (mm) | 200 |
| Max Bags Per Minute | 120 |
| Scale Size | 300 (L) x 200 (W) |
| USB Data Export | Yes |
| PC Connectivity | RS232 / Ethernet |
| Flow Direction | L-R or R-L |
| Perspex Windshield Opening | 125 mm |
| Power Supply | Single phase 240V |
| Construction | Stainless Steel |
| Rejection Mechanisms Available | Air, Flapper, Pusher |
| Height From Conveyor Belt To Ground (mm) | TBC ± 50 mm |
| Footprint Spacing (mm) | 600 x 600 |
In-Line Checkweighing System ENQUIRE NOW BUY NOW
TSXCG2000G

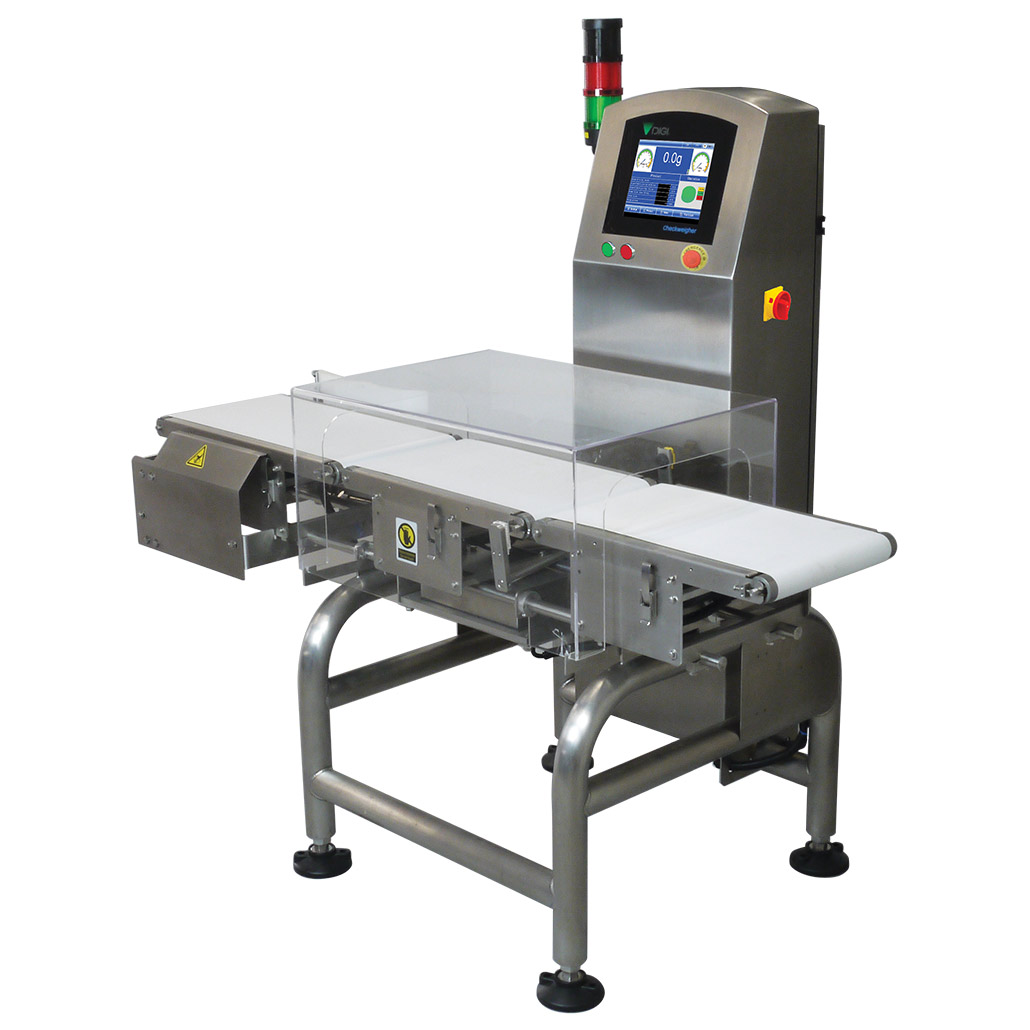

The TSXCG2000G DIGI In-Line Checkweigher is engineered for product weighing up to 2 kg. It features high precision German loadcells and fast processing circuitry for fast and accurate weight readings every time.
Smooth and quiet belt operation helps achieve high accuracy product weighing to protect your brand reputation and reach your legal requirements at a fast paced speed. From standard spec units with simple integrated rejection, through to custom specified units designed to meet your ultimate needs, we have an option for you.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
In-Line Checkweighing System
Platform Size (mm): 200 (L) x 300 (W)
Capacity: 2 kg
Belt Width: 200mm
POA
