Fully Auto Weigh Wrap Labeller ENQUIRE NOW BUY NOW

AW5600AT2

Features
Specifications
Downloads
  • legal for trade use
  • low noise design reduces operational noise
  • easy to use with large 15” full colour touch screen and on-screen help messages
  • capable of wrapping trays up to 130 mm high
  • weighs, wraps, prices and labels an impressive speed of up to 36 packs per minute
  • wide 300dpi thermal head allows more detail to be printed on labels up to 80mm wide
  • accurate label placement that can be programmed for each PLU
  • engineered to use new environmentally conscious linerless labels
  • free-layout function keys allow users to customise the key layout
  • fast PLU file communication via Ethernet

OPTIONS

  • wireless communications interface (part code BL9898)
  • several labeller options: main, second, POP and bottom. Time and label costs are saved through multiple labelling options as two or three labels are applied all in one pass while the product is wrapped
  • linerless labelling (factory fitted option)
  • wireless RF communication for a cable-free environment
Legal For Trade Use Yes
Capacity 6 / 15 kg x 2 / 5 g (multi-interval)
Package Size*

130 - 380 wide

10 - 130 high

80 - 254 deep

Wrapping Speed Maximum 36 packs per minute
Number of Film Rolls One
Film Width (mm) 300 - 450
Film Length (mm) Maximum 1,500
Label Type

Thermal paper die cut labels

Thermal paper linerless labels available as a factory fitted option. Linerless label dimensions are available on the downloadable product brochure.

Label Width 40 - 80 mm for die cut labels
Label Length 28 - 105 mm for die cut labels
Display Panel 15 inch TFT colour
Keypad Pictogram or English
Programmable Items PLU no., commodity name, ingredient, unit price, price, tare weight, sell-by-date, taste-by-date, department name, barcode (UPC, EAN), target weight, special message, advertising message, shop name & logo, extra print format, wrapping conditions, etc.
Power Source Single Phase, 220 - 240 VAC, 50 Hz, 1.8 kw
Overall Dimensions (mm) 1405 (W) x 1535 (D) x 1465 (H)
Net Weight Approximately 400 kg (with single labeller)

* the maximum combination of the above Package Size Dimensions is not available and the available package size depends on the film width.



Fully Auto Weigh Wrap Labeller ENQUIRE NOW BUY NOW

AW5600AT2

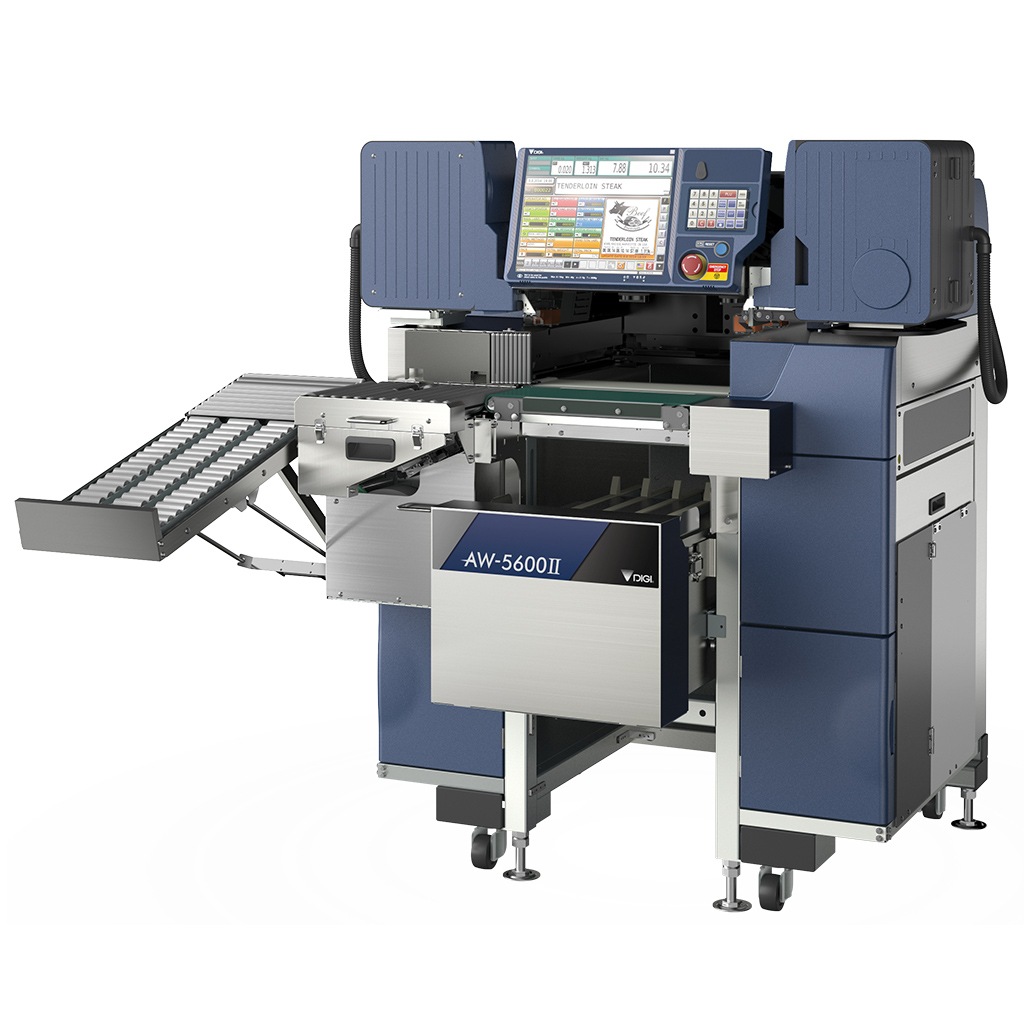

The high performance AW5600AT2 Automatic Weigh Wrap Labeller will weigh, wrap, calculate pack price and label all in one efficient pass. The option of having up to three labelling units allows you to apply additional eye-catching promotional labels simultaneously with the main price label.  The dynamic film stretching technology reduces film consumption and costs, and delivers clean, tidy wrapping and labelling that looks stunning on the store shelf and increases consumer appeal. These impressive food packaging machines are legal for trade use in New Zealand.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

Fully Auto Weigh Wrap Labeller

Capacity: 6 kg / 15 kg
Maximum Wrapping Speed: 36 packs per minute
Graduation Interval: 2 g / 5 g
POA

Spare Parts / Options

Atria Management System

WSAM

POA
