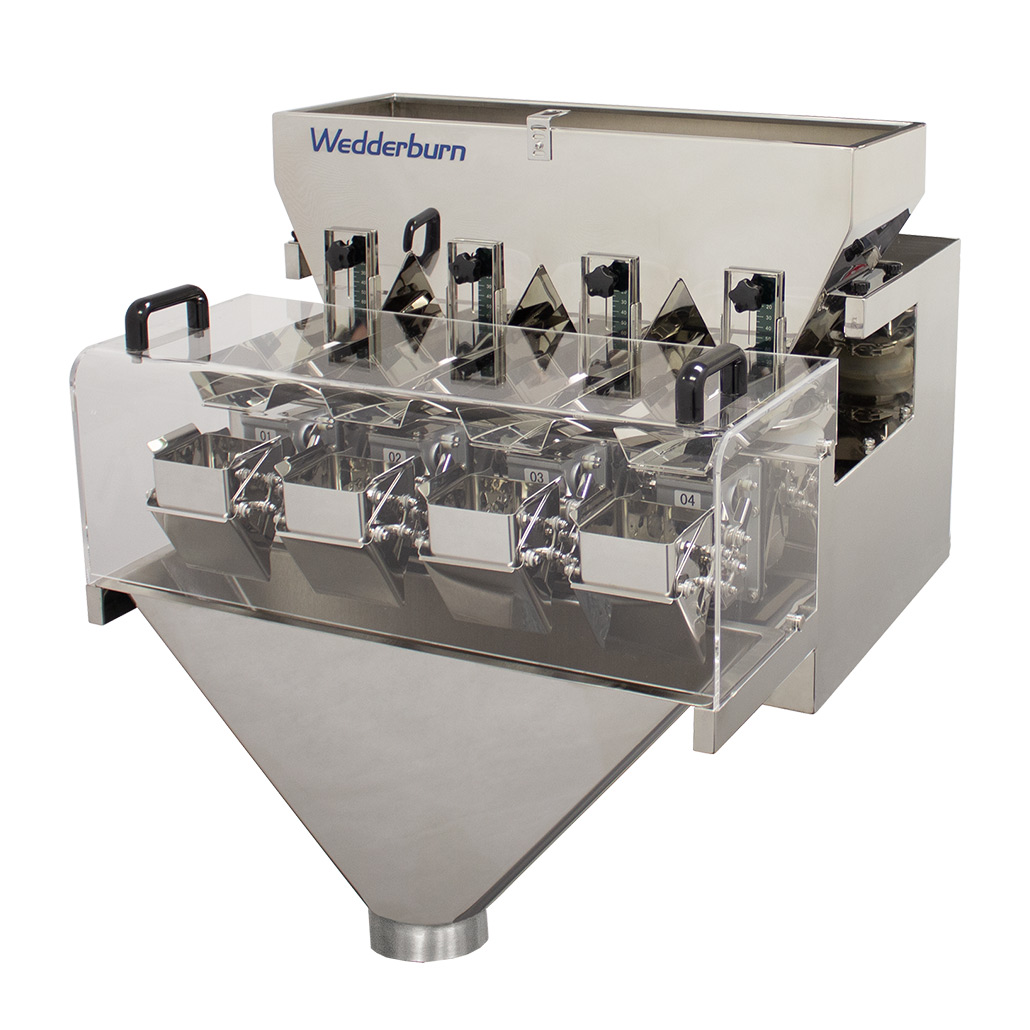

Four Head Linear Weigher 500 ml ENQUIRE NOW BUY NOW
WLW4-1-05L-S
- 23 litre hopper volume
- utilises a vibration pan and high precision weighing load cells
- capable of product mixing
- quickly disconnect the hopper, weigh bucket and funnel without the need for special tooling to save time when cleaning the unit or changing products
- most commonly used for semi-automatic operation or small production requirements
- stepper motor controls the weigh bucket, eliminating the need for pneumatic air supply
- automatic cycle or manual operation activated with the foot pedal that is included
- settings can be changed whilst the unit is operating giving you control over weight, accuracy, and speed
- authority levels can be set controlling what users have access to so that security and data integrity can be maintained
- standalone unit that can be set on table top integrated with auxiliary equipment
- programmable bulk and dribble vibration / weight settings
- adjustable dwell time for weigh bucket door opening
- food grade stainless steel for contact parts
OPTIONS
- dimple finish (factory option)
| Holding Hopper Volume | 23 litres |
| Weigh Bucket Maximum Capacity | 300 g / 0.5 litres |
| Weighing Accuracy | 0.2 g |
| Range of Single Bag Weight | 5 g - 300 g |
| Maximum Speed | 30 packs per minute |
| Product Feed System | Vibration |
| Number of Weigh Heads | 4 |
| Product Mixing | Yes. Mix from 1, 2 or 4 buckets. |
| Operator Panel | 7 inch colour touch screen |
| Preset Programs | 20 |
| Power Required | Single Phase (AC220V ±10%) |
| Air Required | No |
| Overall Dimensions (mm) | 684 (L) x 685 (W) x 740 (H) |
| Net Weight of Machine | Approx 120 kg |
Four Head Linear Weigher 500 ml ENQUIRE NOW BUY NOW
WLW4-1-05L-S
Four-Head Compact Linear Weighers are ideal for situations where repetitive weighing and bag filling is required. They're engineered to improve speed, efficiency, accuracy and food hygiene when packing regular shaped dried foodstuffs such as coffee powder or beans, seeds, nuts, rice, pasta, milk powders, spices and confectionery.
The WLW4-1-05L-S model features 4 food-grade stainless steel weigh buckets each with a capacity of 0.5 litres and is capable of product mixing from 1, 2 or 4 weigh buckets.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
Four Head Linear Weigher 500 ml
POA
