Compact Auto Weigh Wrap Labeller ENQUIRE NOW BUY NOW

AW5600CP2AUTO

Features
Specifications
Downloads
  • legal for trade use
  • small footprint that saves valuable floor space
  • easy to use with large 15” full colour touch screen and on-screen help messages
  • capable of wrapping trays up to 130 mm high
  • weighs, wraps, prices and labels efficiently at a speed of up to 30 packs per minute
  • wide 300dpi thermal head allows more detail to be printed on labels up to 80mm wide
  • film loading is fast and easy
  • free-layout function keys allow users to customise the key layout
  • fast PLU file communication via Ethernet
  • contact parts such as the weighing platter can be easily accessed and removed for thorough cleaning so that excellent hygiene standards can be maintained

OPTIONS

  • linerless labelling (factory fitted option)
  • wireless communications interface (part code BL9898)
  • second label printer
  • gravity outfeed roller model available (Model # AW5600CPR2)
Legal For Trade Use Yes
Capacity 6 / 15 kg x 2 / 5 g (multi-interval)
Package Size*

130 - 350 wide

10 - 130 high

80 - 230 deep

Wrapping Speed Maximum 30 packs per minute
Number of Film Rolls One
Film Width (mm) 300 - 500
Label Type

Thermal paper die cut labels

Thermal paper linerless labels available as a factory fitted option. Linerless label dimensions are available on the downloadable product brochure.

Label Width 40 - 80 mm for die cut labels
Label Length 28 - 105 mm for die cut labels
Display Panel 15 inch TFT colour
Keypad Pictogram or English
Programmable Items PLU no., commodity name, ingredient, unit price, price, tare weight, sell-by-date, taste-by-date, department name, barcode (UPC, EAN), target weight, special message, advertising message, shop name & logo, extra print format, wrapping conditions, etc.
Power Source Single Phase, 220 - 240 VAC, 50 Hz, 1.8 kw
Overall Dimensions (mm) 1060 (W) x 982 (D) x 1786 (H)
Net Weight Approximately 360 kg

* the maximum combination of the above Package Size Dimensions is not available and the available package size depends on the film width.



Compact Auto Weigh Wrap Labeller ENQUIRE NOW BUY NOW

AW5600CP2AUTO

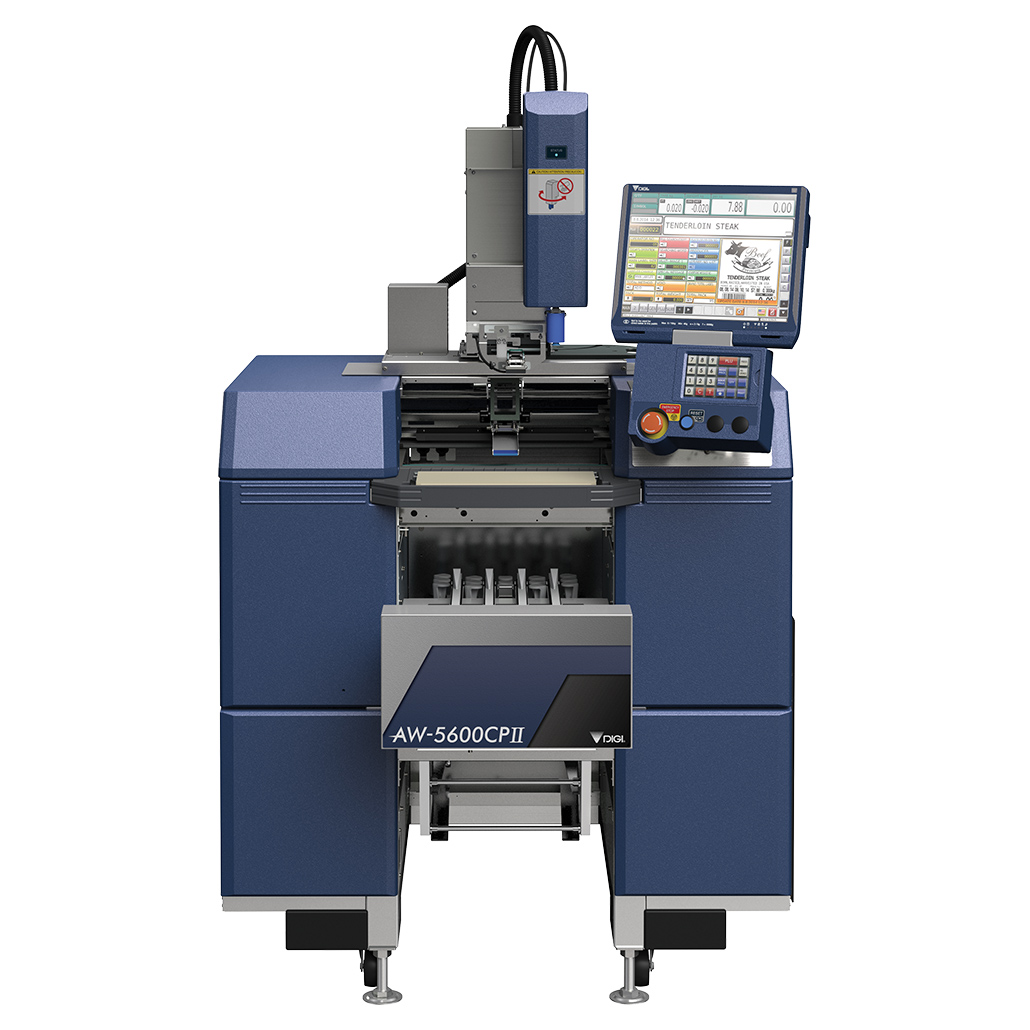

The AW5600CP2AUTO Wrapper delivers fast accurate and automatic weigh labelling and wrapping, and the newly enhanced sealing system means the wrapping finish is even better than in previous models, resulting in superior on-shelf food presentation & hygiene. It features a smaller footprint than other fully automatic wrappers and only requires approximately 1 meter square floor space.

Legal for trade use in New Zealand, and with an impressive weigh-wrap-labelling speed of up to 30 packs per minute, this compact wrapper is certain to enhance operations where accurate weighing, packing and pricing is required.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

Compact Auto Weigh Wrap Labeller

Capacity: 6 kg / 15 kg
Maximum Wrapping Speed: 30 packs per minute
Graduation Interval: 2 g / 5 g
POA

Spare Parts / Options

Atria Management System

WSAM

POA
