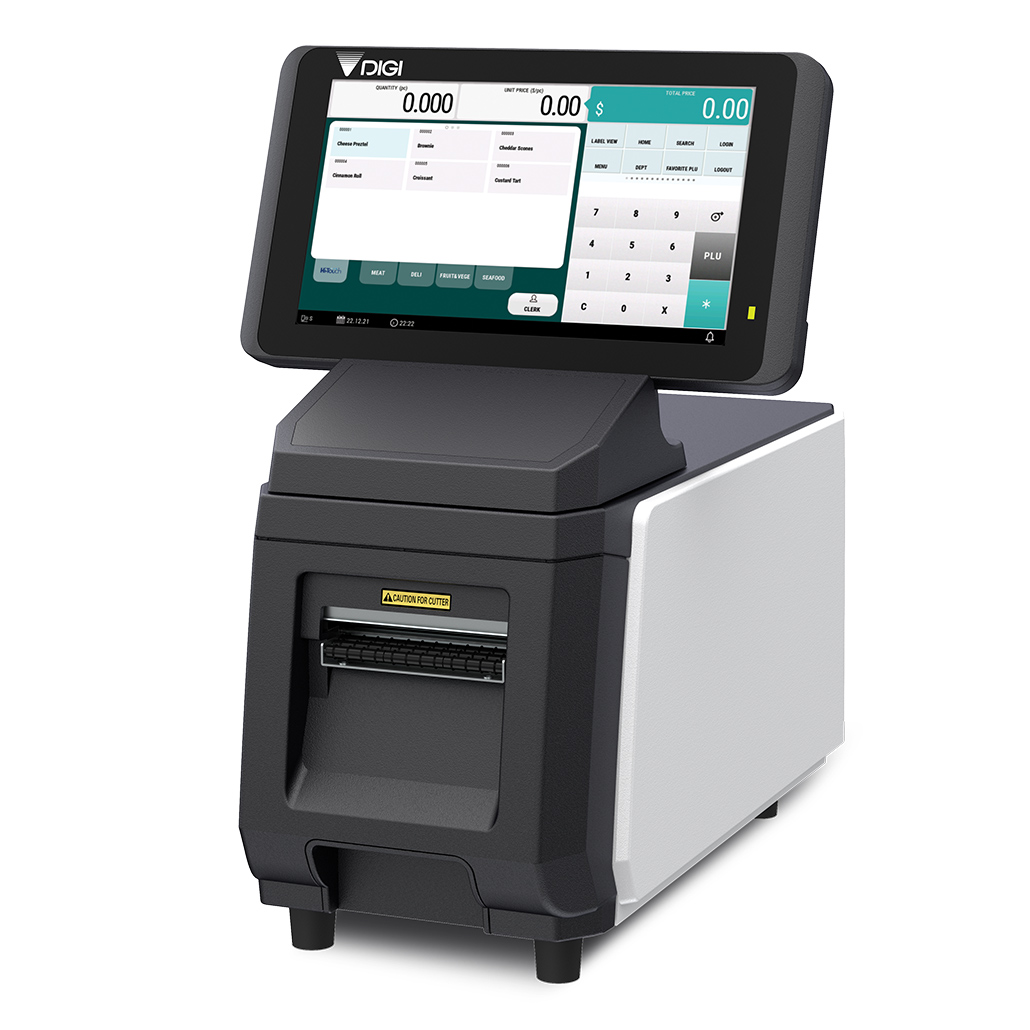

Stand Alone Thermal Label Printer ENQUIRE NOW BUY NOW
TSDP5000XPLUS
- 10 inch full-colour capacitive touchscreen
- reliable durability for high-use environments
- thermal direct label printing
- 300 dpi print resolution
- intelligent stand-alone type label printer
- easy front loading label roll change
- built-in operator training modules
- configurable colour touch screen user interface
- remote diagnostics and support
- helpful on-screen operator prompts
- user display rotates left/right and up/down for easy operation
- supports food labelling regulation formats for; Country of Origin (COO), Plain English Allergen Labelling (PEAL), Nutritional Information Panel 9NIP) Labelling
- linerless labelling is available as a factory fitted option (Model Number TSDP5000XPLUSLL)
OPTIONS
- wireless communications interface (part code BL9898)
- linerless labelling - must be factory fitted (model # TSDP5000EL3S)
- Atria back office management software
| Print Method | Direct Thermal |
| Printer Type | Industrial |
| Print Head Type | Flat Head |
| Maximum Print Speed | 150 mm per second |
| Maximum Print Width | 80 mm |
| Maximum Print Length | 350 mm |
| Maximum Label Width | 80 mm |
| Maximum Label Roll Size | 125 mm OD (100 mm if using rewind) |
| Label Core Size | 40 mm |
| Maximum Ribbon Length | NA |
| Maximum Ribbon Width | NA |
| Ribbon Wind Direction | NA |
| Ribbon Core Size | NA |
| Communication Protocol |
Ethernet WiFi available as an additional option |
| Peel and Present |
Yes |
| Internal Rewinder |
Yes |
| Overall Dimensions (mm) |
290 (W) x 423 (D) x 420 (H) |
| Net Weight |
12 kg |
What's the best way to care for my thermal printhead?
Thermal printheads impact print quality, are very delicate and can be costly to replace. Care is needed when cleaning to ensure operator safety and prevent unnecessary damage to the printhead. Please see the guidelines published in our Info Centre. Click here to view our Thermal Printhead Care instructions.
Stand Alone Thermal Label Printer ENQUIRE NOW BUY NOW
TSDP5000XPLUS
Intelligent Stand-alone Thermal Direct Label Printer with colour touch screen operator panel, built-in operator training modules and multimedia functionality. Models available for printing die-cut or linerless thermal labels at high speed.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
Stand Alone Thermal Label Printer
Print Speed Maximum: 150 mm per second
Print Width Maximum: 80 mm
Print Resolution: 300dpi
POA
