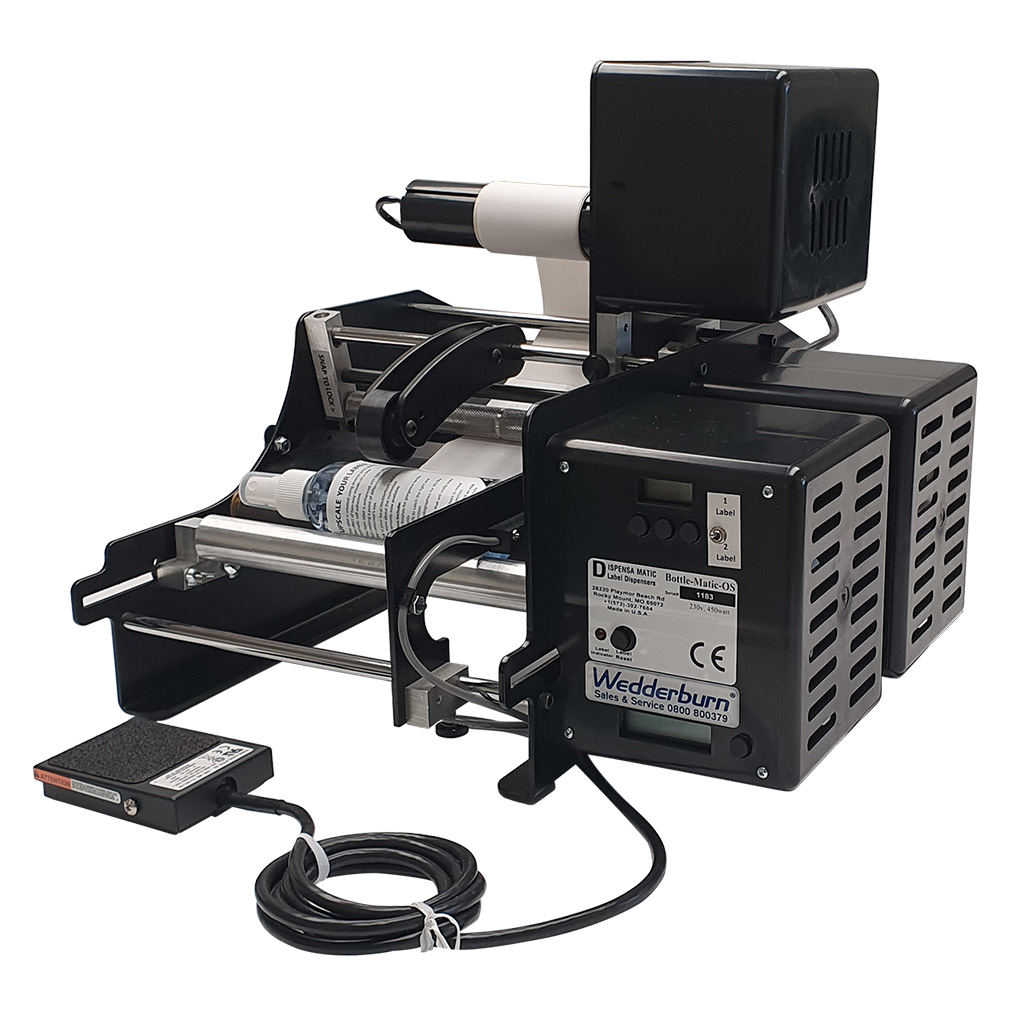

Semi-Automatic Bottle Labellers ENQUIRE NOW BUY NOW

BOTTLEMATIC OS Series

Features
Specifications
Downloads
  • quality steel construction with highly polished dispensing bars to ensure smooth flow of labels
  • label objects from 13 mm to 150 mm diameter and up to 200 mm in length on the Bottlematic OS10 and up to 300 mm in length on the Bottlematic OS16 (longer if the item has a neck)
  • designed for a 76 mm label roll core
  • auto-detection sensor detects bottles / jars and automatically starts applying labels for faster operation
  • optical label sensor makes set up easy and requires less adjustment (not suitable for transparent labels)
  • apply front and back labels simultaneously (if on same roll)
  • tapered rollers can be adjusted for steeply tapered jars or bottles
  • digital counter tracks how many label cycles have been completed
  • built-in waste rewinder unit automatically winds up backing paper
  • labels are applied at over 114 mm per second, allowing over 1000 pieces to be labelled per hour with average dexterity
  • easy loading and removing of items being labelled
  • comes complete with a convenient footswitch, keeping hands free for quick placement and removal of items
Machine Type Semi-Automatic Bottle Labeller for bench top operation
Label Width (mm)

BottlematicOS10 = 40 - 200 mm

BottlematicOS16 = 40 - 300 mm

Maximum Label Roll Outside Diameter (mm) 220 (on 76 mm core)
Maximum Labelling Speed 114 mm per second
Overall Dimensions (mm)

BottlematicOS10 = 400 (W) x 550 (D) x 330 (H)

BottlematicOS16 = 550 (W) x 550 (D) x 330 (H)

Semi-Automatic Bottle Labellers ENQUIRE NOW BUY NOW

BOTTLEMATIC OS Series

Apply labels to cylindrical items with speed and precision. OS Bottlematic Labellers feature auto-detection and optical sensors that make the labelling process faster than ever before. Front and back labels can be applied simultaneously (if both labels are on the same roll) while the digital counter tracks how many labelling cycles have been completed. Suitable for labelling steeply tapered bottles and jars.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

BottlematicOS10

Label Width Max: 200mm
Label Roll O.D.: 220mm
Sensor Type: NA

POA

BottlematicOS16

Label Width Max: 300mm
Label Roll O.D.: 220mm
Sensor Type: NA

POA
