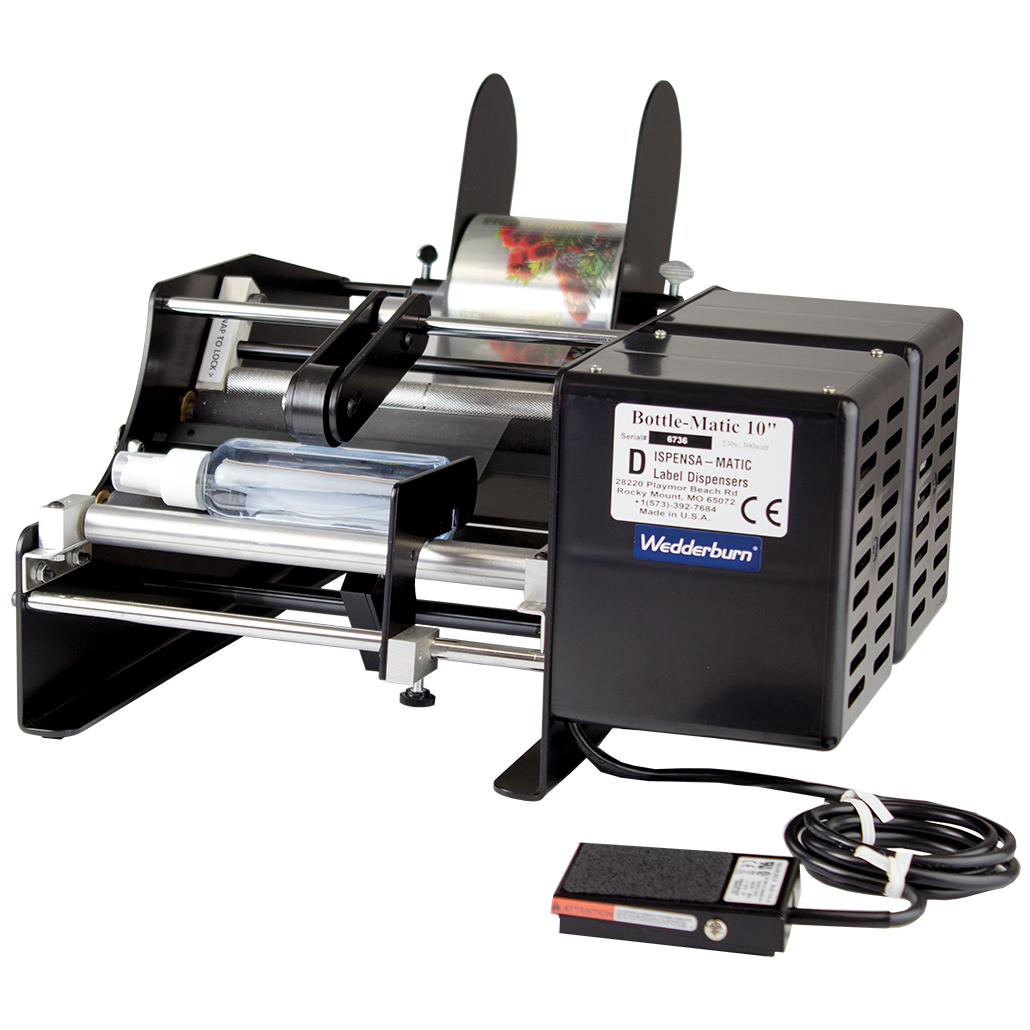

Semi-Automatic Bottle Labellers ENQUIRE NOW BUY NOW

BOTTLEMATIC F Series

Features
Specifications
Downloads
  • quality steel construction with highly polished dispensing bars to ensure smooth flow of labels
  • label objects from 13 mm to 150 mm diameter and up to 200 mm in length using the Bottlematic F10 or up to 300 mm in length using the Bottlematic F16 (longer if the item has a neck)
  • designed for a 76 mm label roll core
  • easily label tapered bottles simply by adjusting the roller position
  • labels are applied at over 114 mm per second, allowing over 1000 pieces to be labelled per hour with average dexterity
  • easy loading and removing of items being labelled
  • comes complete with a convenient foot switch, keeping hands free for quick placement and removal of items
  • micro-switch activation works on most labels even transparent labels
Machine Type Semi-Automatic Bottle Labeller for bench top operation
Label Width (mm)

BottlematicF10 = 40 - 200 mm

BottlematicF16 = 40 - 300 mm

Maximum Label Roll Outside Diameter (mm) 220 (on 76 mm core)
Maximum Labelling Speed 114 mm per second
Overall Dimensions (mm)

BottlematicF10 = 400 (W) x 550 (D) x 270 (H)

BottlematicF16 = 550 (W) x 550 (D) x 300 (H)

Semi-Automatic Bottle Labellers ENQUIRE NOW BUY NOW

BOTTLEMATIC F Series

Label bottles, cans, jars and tubes quickly and easily, and most importantly with accurate wrinkle-free placement. Simply load the labels, place the item to be labelled on the machine and depress the foot switch. Job done!

Two models to choose from depending on the size of your product being labelled and the label being applied.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

BottlematicF10

Label Width Max: 200mm
Label Roll O.D.: 220mm
Sensor Type: NA

POA

BottlematicF16

Label Width Max: 300mm
Label Roll O.D.: 220mm
Sensor Type: NA

POA
