Industrial Thermal Label Printers ENQUIRE NOW BUY NOW

WTPTI2414MH2

Features
Specifications
Downloads
Q&A
  • thermal direct or thermal transfer label printing
  • 203 dpi print resolution
  • 3.5” Colour LCD display with 6 button menus
  • heavy duty die-cast aluminium design
  • large ribbon capacity - 600 metres
  • RS232, USB and Ethernet Interface
  • USB host for scanner or PC keyboard
  • 1D and 2D barcode printing
  • compatible with EPL, ZPL, ZPLII and DPL printer languages
  • gap transmissive sensor (position adjustable)
  • black mark reflective sensor (position adjustable)
  • head open sensor
  • ribbon end sensor
  • compatible for use with; continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound) media types
  • Bartender Ultralite label design software
Print Method Direct Thermal and Thermal Transfer
Printer Type Industrial
Print Head Type Flat Head
Maximum Print Speed 356 mm (14 inches) per second
Maximum Print Width 104 mm (4 inches)
Maximum Label Width 114 mm
Maximum Label Roll Size 203.2 mm OD
Maximum Ribbon Length 600 m or 90 mm OD
Maximum Ribbon Width 114 mm
Ribbon Wind Direction Inside  or  Outside
Ribbon Core Size 25 mm (1 inch)
Communication Protocol

Serial, USB, Ethernet

WiFi available as an additional option

Bluetooth available as an additional, factory fitted option

Peel and Present

Additional Option

Internal Rewinder

Additional Option

Overall Dimensions (mm)

276 (W) x 502 (D) x 326 (H)

Net Weight

15.6 kg

What's the best way to care for my thermal printhead?

Thermal printheads impact print quality, are very delicate and can be costly to replace. Care is needed when cleaning to ensure operator safety and prevent unnecessary damage to the printhead. Please see the guidelines published in our Info Centre. Click here to view our Thermal Printhead Care instructions.

Industrial Thermal Label Printers ENQUIRE NOW BUY NOW

WTPTI2414MH2

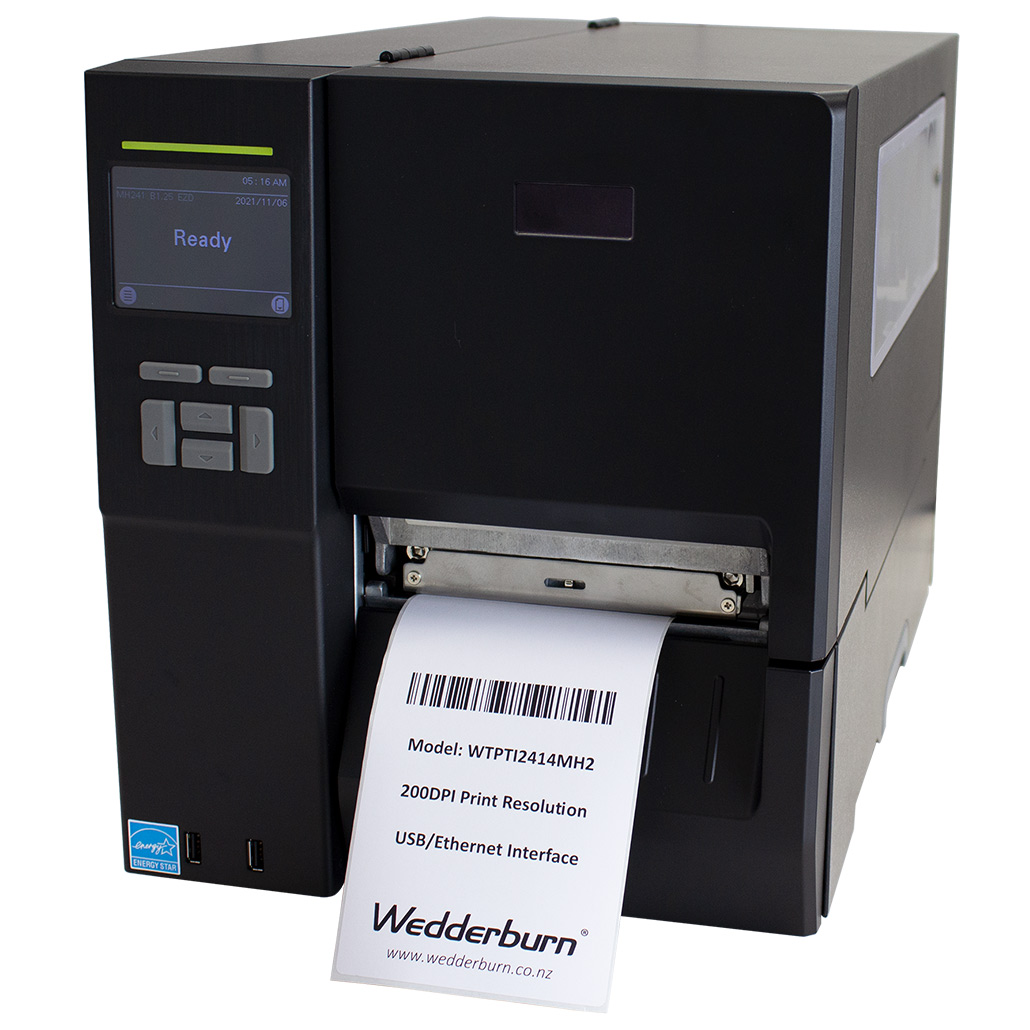

WTPTI2414MH2 Industrial Thermal Label Printers engineered for high volume label printing. Featuring high print speeds of up to 356 mm (14 inches) per second, heavy duty die cast aluminium design, large 600 m ribbon capacity and a range of interface options.

You can also purchase blank thermal labels directly from Wedderburn Labels, or have custom labels produced by our talented Label Manufacturing team. View Wedderburn Labels

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

Industrial Thermal Label Printers

Print Speed Maximum: 356 per second
Print Width Maximum: 104 mm
Print Resolution: 203dpi
POA

Spare Parts / Options

Cutter Module

RD6981

POA

Internal Rewinder for Labels

RD6984

POA

Label Peel Off Module

RD6982

POA

Standalone Label Rewinder

RD5929

POA

Thermal Printhead Cleaning Kit

BL0606

NZD $78.00

WiFi Kit for Industrial Thermal Label Printers

RD7043

POA
