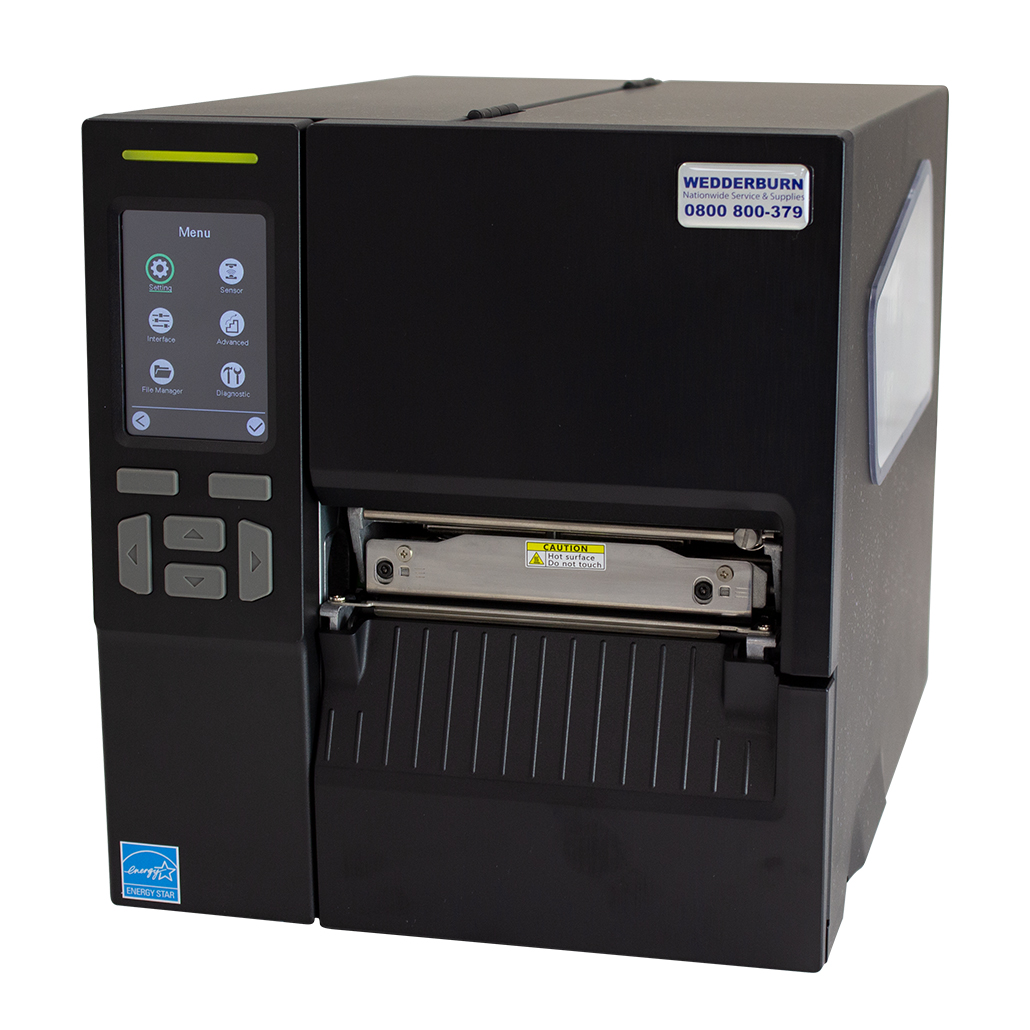

Industrial Thermal Label Printer ENQUIRE NOW BUY NOW

WTPTM2412E

Features
Specifications
Downloads
Q&A
  • thermal direct or thermal transfer label printing
  • large ribbon capacity
  • robust die-cast based print mechanism and metal cover with large clear media view window
  • 3.5” touch HVGA colour LCD
  • 128 MB flash memory and 64 MB SDRAM
  • gap transmissive sensor (position adjustable)
  • black mark reflective sensor (position adjustable)
  • ribbon encoder sensor
  • ribbon end sensor
  • head open sensor
  • media type: continuous, die-cut, black mark, fan-fold, notched (outside wound)
  • compatible with EPL, ZPL, ZPLII and DPL printer languages
  • Bartender Ultralite label design software
Print Method Direct Thermal and Thermal Transfer
Printer Type Industrial
Print Head Type Flat Head
Maximum Print Speed 304 mm per second
Maximum Print Width 108 mm
Maximum Label Width 120 mm
Maximum Label Roll Size 203 mm OD
Maximum Ribbon Length 450 m
Maximum Ribbon Width 110 mm
Ribbon Wind Direction Inside  or  Outside
Ribbon Core Size 25 mm
Communication Protocol

Serial, USB, Ethernet

WiFi available as an option

Bluetooth  available as an option

Peel and Present

Additional Option

Internal Rewinder

Additional Option

Overall Dimensions (mm)

248 (W) x 274 (D) x 436 (H)

Net Weight

9.2 kg

What's the best way to care for my thermal printhead?

Thermal printheads impact print quality, are very delicate and can be costly to replace. Care is needed when cleaning to ensure operator safety and prevent unnecessary damage to the printhead. Please see the guidelines published in our Info Centre. Click here to view our Thermal Printhead Care instructions.

Industrial Thermal Label Printer ENQUIRE NOW BUY NOW

WTPTM2412E

WTPTM2408E Industrial Thermal Label Printers feature a small footprint, easily understandable operator interface and full set of options to meet nearly every label printing application. The compact design, quiet operation and fast label printing throughput is ideal for both office and shop floor on-demand thermal label printing.

Engineered for durability and quality label printing performance in even the toughest production environments.

You can also purchase blank thermal labels directly from Wedderburn Labels, or have custom labels produced by our talented Label Manufacturing team. View Wedderburn Labels

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

Industrial Thermal Label Printer

Print Speed Maximum: 304 mm per second
Print Width Maximum: 108 mm
Print Resolution: 203dpi
POA

Spare Parts / Options

Peel Present Kit for WTPTM2412E Label Printer

GY1133

POA

Stainless Steel Printer Enclosure

WSPRTENCSS

POA

Standalone Label Rewinder

RD5929

POA

Thermal Printhead Cleaning Kit

BL0606

NZD $78.00

WiFi Kit for Industrial Thermal Label Printers

GY1132

POA
